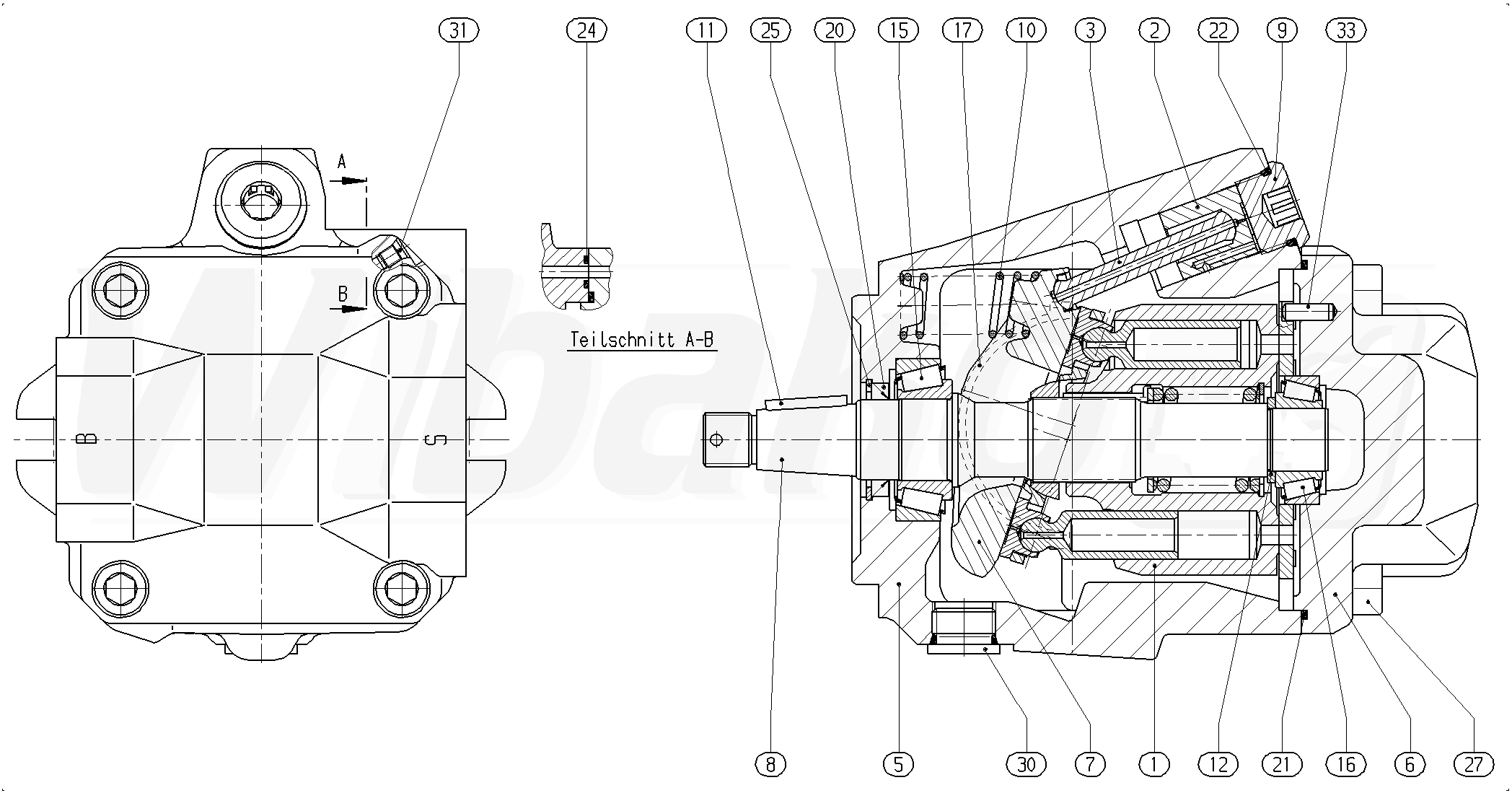

A AA10V O 45 DFR /50L-PCC12N00 -SO832 (R910991129)
BASE UNIT (134681)

BASE UNIT
(134681)


1

ROTARY GROUP
(15976)

Group »


2

ADJUSTING PISTON
(15827)


3

PISTON ROD
(13290)


5

PUMP HOUSING
(16355)


6

CONNECTION PLATE
(134679)


7

SWASH PLATE
(15979)


8

DRIVE SHAFT
(111385)


9

SCREW PLUG
(134682)


10

COMPRESSION SPRING
(15981)


11

PARALLEL KEY
(19844)


12

ADJUSTMENT SHIM
(13222)


15

TAPERED-ROLLER BEARING
(13223)


16

TAPERED-ROLLER BEARING
(13224)


17

BEARING SHELL
(15833)


20

SHAFT SEALING RING
(13226)


21

O-RING
(62618)


24

R-RING
(15821)


25

RETAINING RING
(13229)


27

SOCKET HEAD CAP SCREW
(108230)


30

SCREW PLUG
(11369)


31

DOUBLE BREAK-OFF PLUG
(18990)


33

STRAIGHT PIN
(11892)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
