A AA10VSO 28 FHD /31R-PKC62N00 (R910938440)

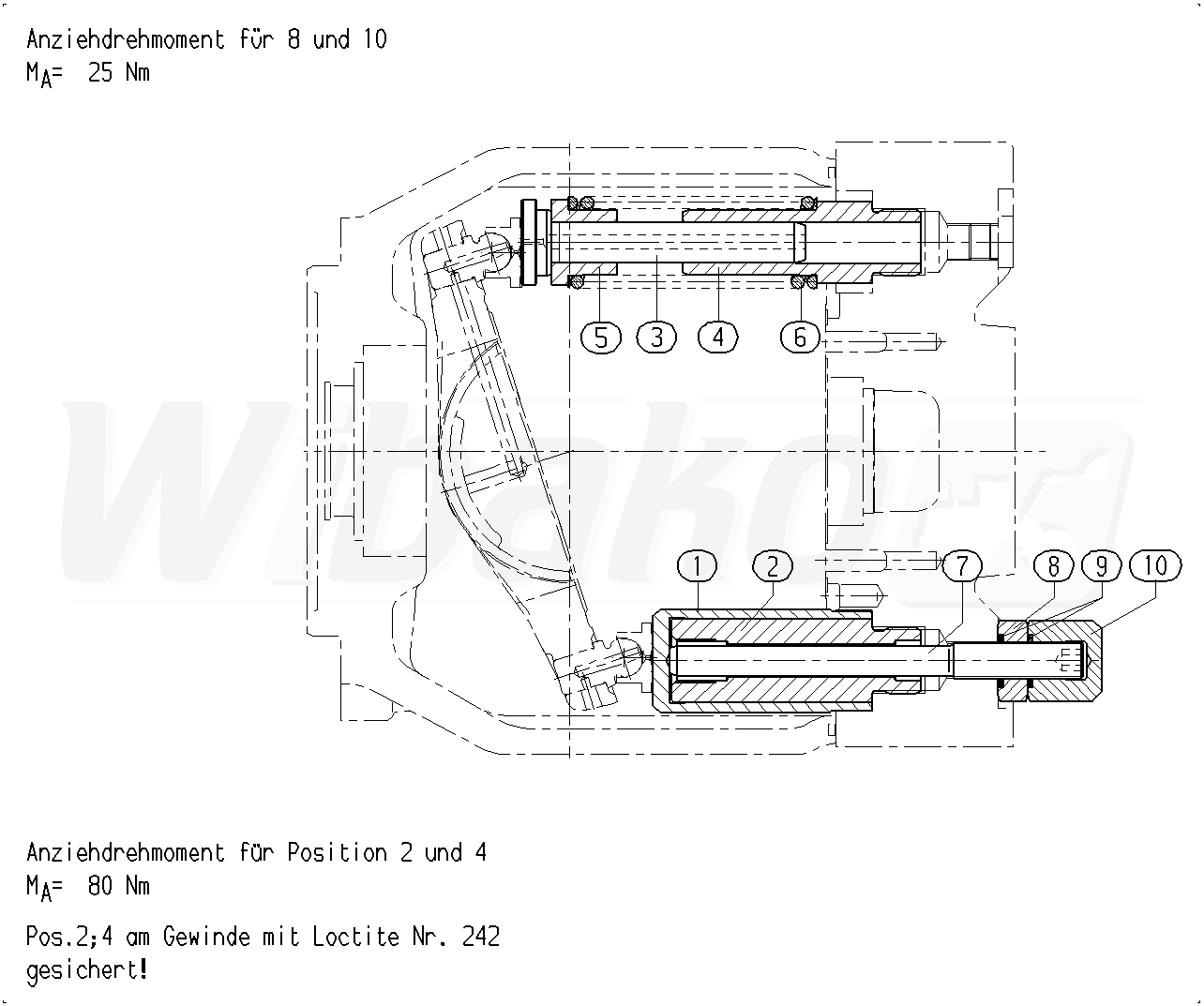

ADJUSTING PIECE (135095)

ADJUSTING PIECE
(135095)


1

ADJUSTING PISTON
(82599)


2

PISTON GUIDE
(107404)


3

OPPOSED PISTON
(18443)


4

PISTON GUIDE
(82601)


5

SPRING DISK
(82602)


6

COMPRESSION SPRING
(82603)


7

STOP SCREW
(107405)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
