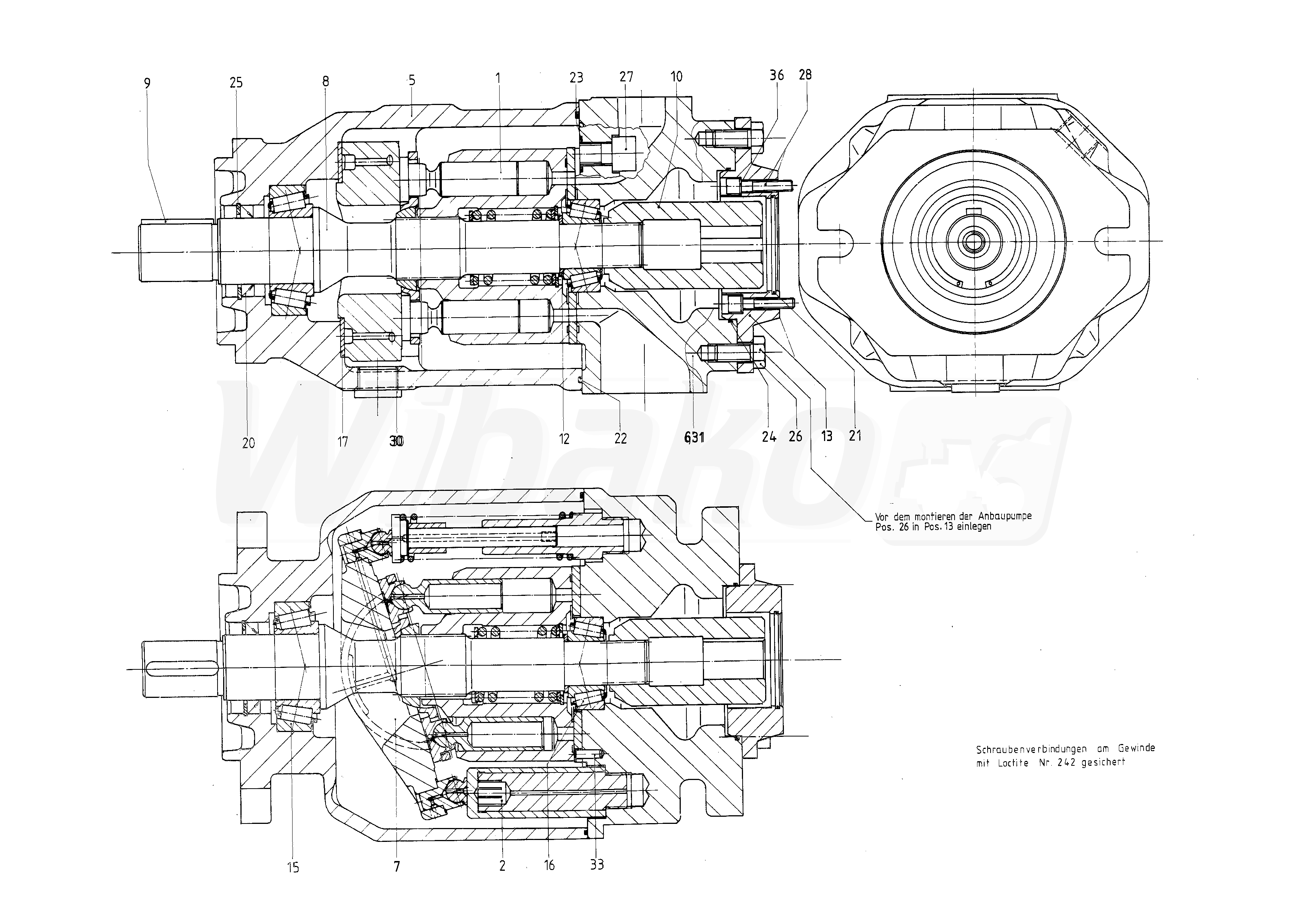

A AA10VSO100 DFLR/31R-PKC62K57 (R902500216)
BASE UNIT (135979)

BASE UNIT
(135979)


1

ROTARY GROUP
(15472)

Group »


2

ADJUSTING PIECE
(16737)

Group »


5

PUMP HOUSING
(19177)


6

CONNECTION PLATE
(47466)


7

SWASH PLATE
(19179)


8

DRIVE SHAFT
(120204)


9

PARALLEL KEY
(109520)


10

HUB
(119995)


12

ADJUSTMENT SHIM
(15478)


13

INTERMEDIATE FLANGE
(112956)


15

TAPERED-ROLLER BEARING
(15479)


16

TAPERED-ROLLER BEARING
(15480)


17

BEARING SHELL
(15481)


20

SHAFT SEALING RING
(15482)


21

O-RING
(12287)


22

O-RING
(16820)


23

R-RING
(30999)


24

O-RING
(17051)


25

RETAINING RING
(11384)


26

HEXAGON SCREW
(95794)


27

SOCKET HEAD CAP SCREW
(15484)


28

SOCKET HEAD CAP SCREW
(54875)


30

SCREW PLUG
(14354)


31

DOUBLE BREAK-OFF PLUG
(18990)


33

STRAIGHT PIN
(11892)


36

BONDED SEAL RING
(13991)
