AAA10VSO100DRG/31R-VKC62N00-S1545 (R902424756)

Axial piston variable pump A10VS, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 100 cm3. Pressure controller with pressure cut-of, hydraulic, remote controlledSealing material: FKM (fluoroelastomer).

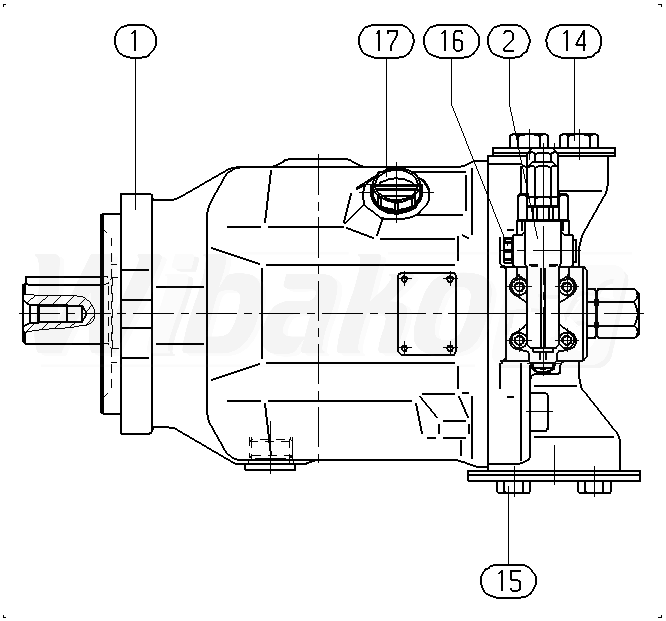

1

BASE UNIT
(136109)

Group »


2

CONTROL VALVE
(15470)

Group »


14

FLANGE COVER
(63603)


15

FLANGE COVER
(63604)


16

SEAL SCREW
(16347)


17

SEAL SCREW
(15162)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
