AAA10VSO140FE1D/31R-PKD62K21 (R910975873)

Axial piston variable pump A10VS, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 140 cm3.
1

BASE UNIT
(136514)

Group »


2

PROPORTIONAL DIRECTIONAL VALVE
(107552)

Group »


3

INDUCTIVE POS.TRANSDUCER
(83746)

Group »


4

CONTROL VALVE
(13886)

Group »


6

SOCKET HEAD CAP SCREW
(61153)


14

FLANGE COVER
(63603)


15

FLANGE COVER
(63604)


16

SCREW PLUG
(14354)


18

SEALING COVER
(121510)

Group »



Return

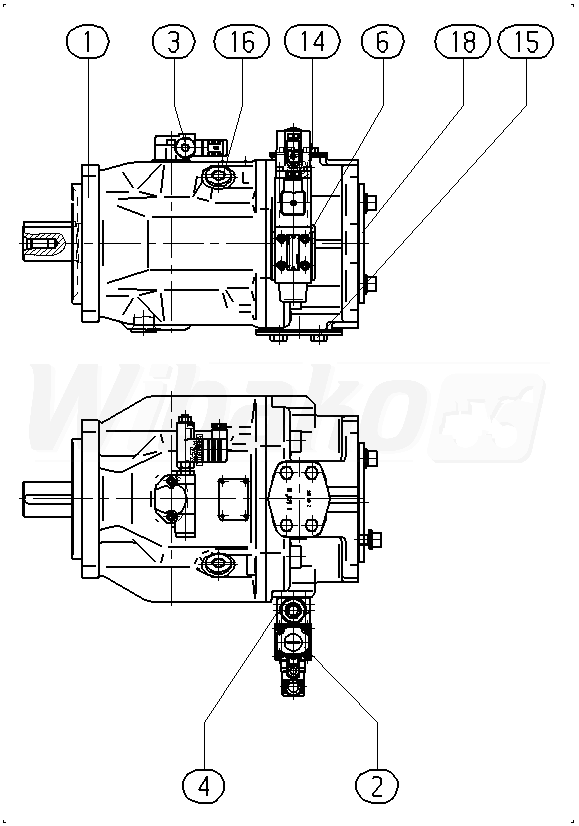

The above diagrams belong to Rexroth www.boschrexroth.com
