A4VG140EP4DT1/32L-NSF02N001EH-S (R902125196)
Axial piston variable pump A4VG. Geometric displacement 140 cm3. Proportional control, electric U = 24 V. Pressure cut-off. Stroking chamber pressure port X3, X4. Without DA control valve. Series 3, index 2. Direction of rotation (viewed on drive shaft): counter-clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft ANSI B92.1a for single pump. Mounting flange SAE J744 2+4-hole. SAE working port A and B, top and bottom Suction port S bottom. Without integrated boost pump. Without through drive. High pressure relief valve, pilot operated 100 to 420 bar with bypass. External boost pressure supply.

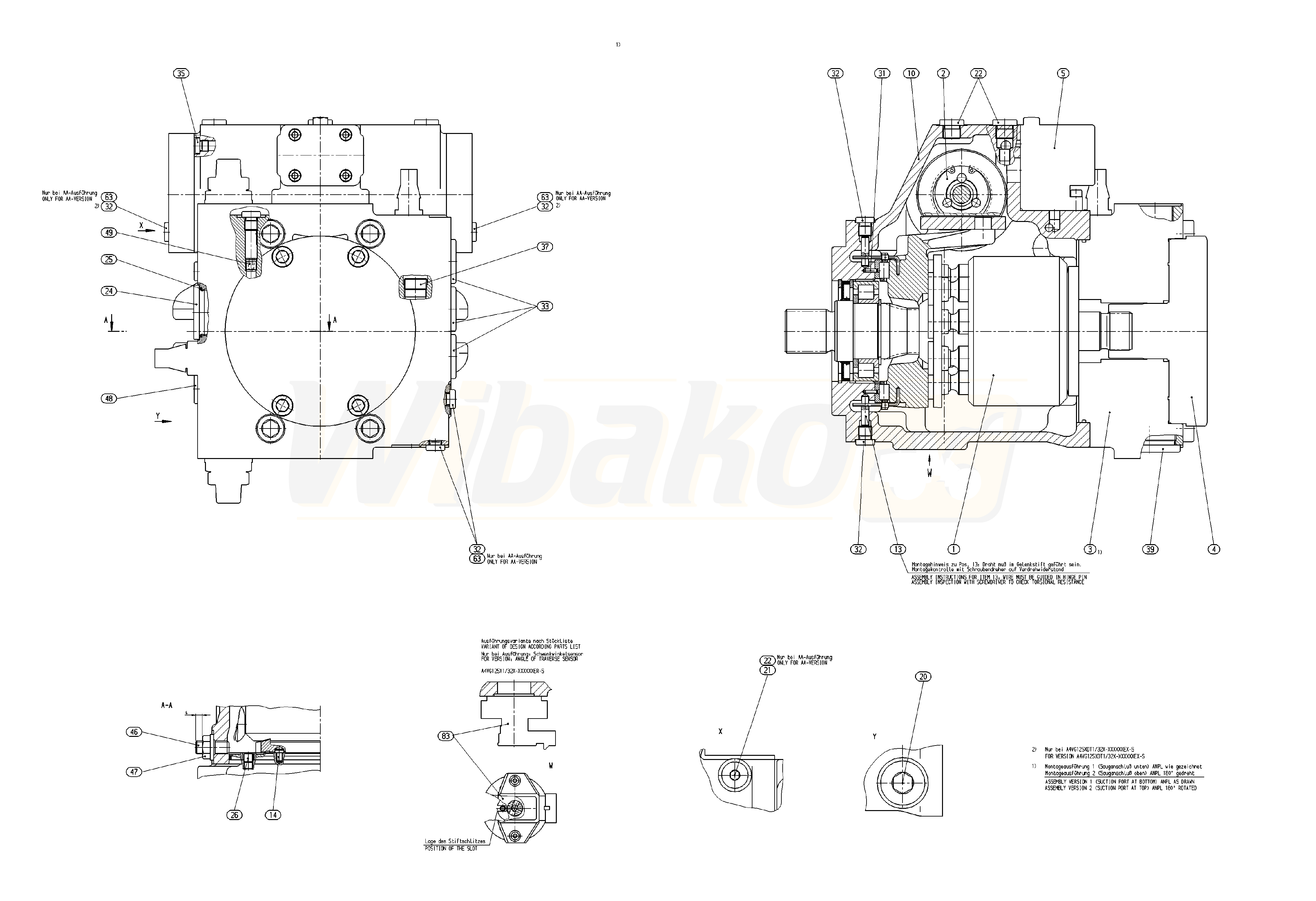

The above diagrams belong to Rexroth www.boschrexroth.com
