A10VG28EF4M1/10R-NSC10F015DP-S (R902203421)

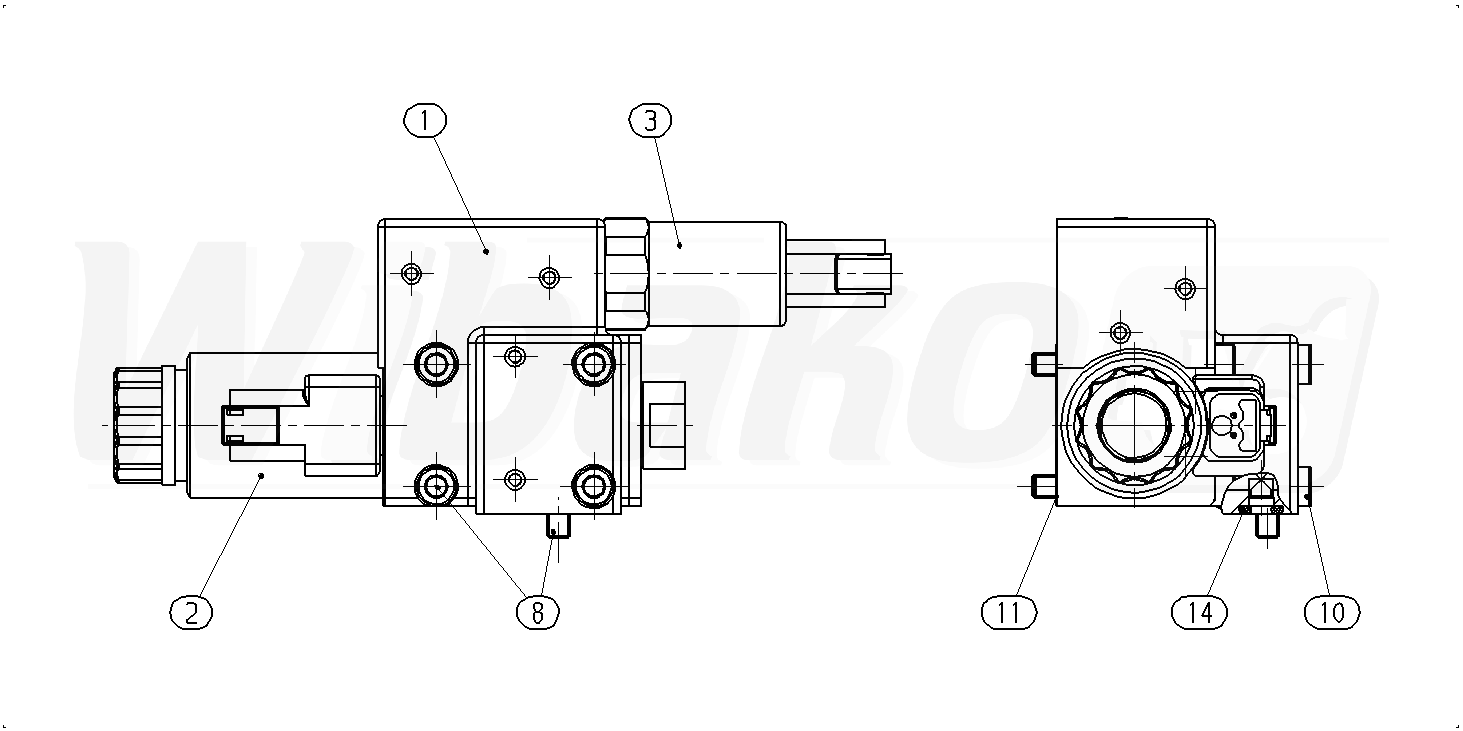

CONTROL MODULE (28176)

CONTROL MODULE
(28176)


1

VALVE HOUSING
(28177)

Group »


2

SWITCHING SOLENOID
(11168)


3

PRESSURE REDUCING VALVE
(16132)


8

SOCKET HEAD CAP SCREW
(10904)


10

SOCKET HEAD CAP SCREW
(12219)


11

SEAL
(10783)


14

O-RING
(10188)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
