A10VG28EP2M1/10R-NSC10F00XDH-S (R902068212)

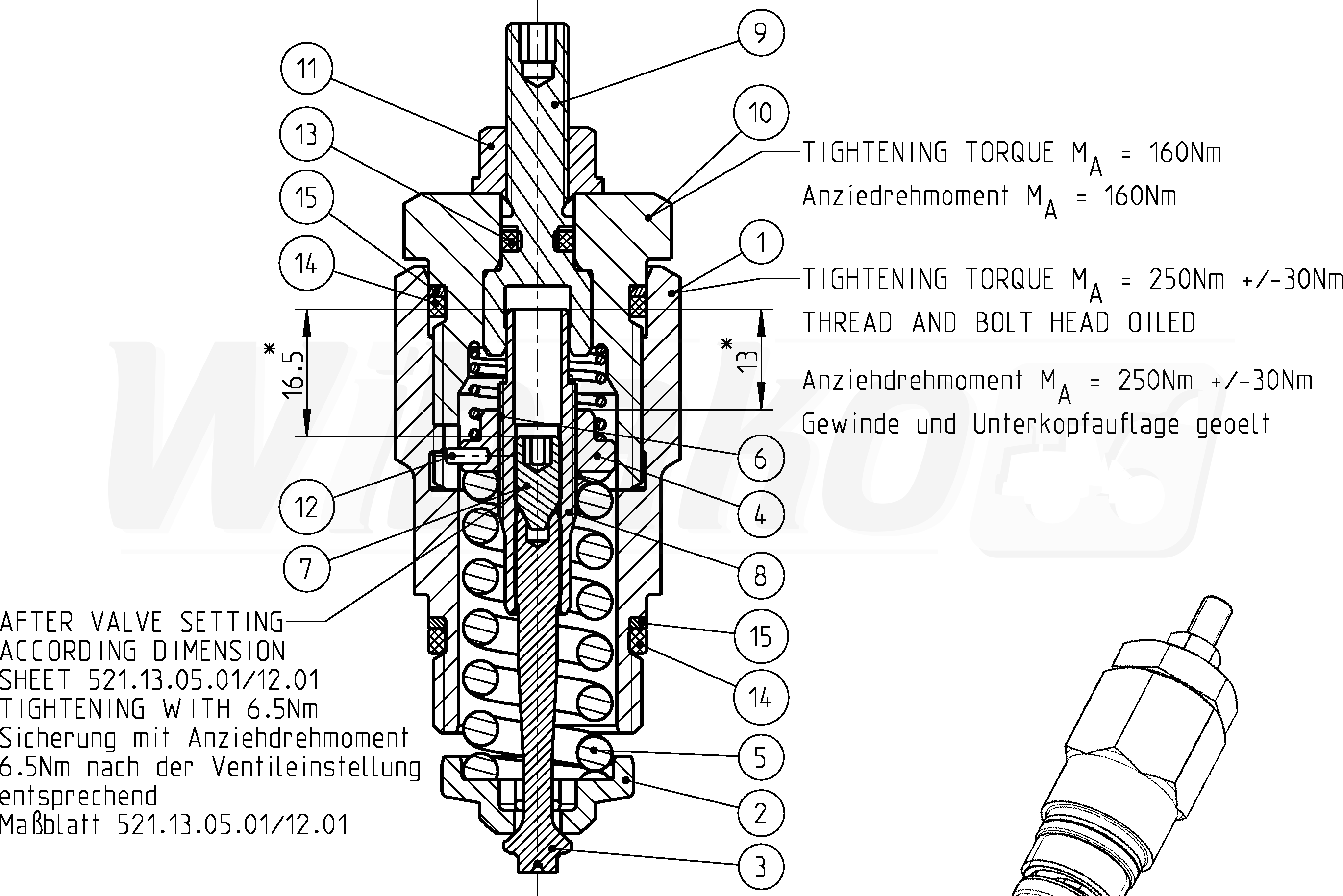

PRESSURE RELIEF VALVE (38931)

PRESSURE RELIEF VALVE
(38931)


1

SCREW PLUG
(39072)


2

VALVE PLATE
(21959)


3

VALVE STEM
(21960)


4

SPRING DISK
(21961)


5

COMPRESSION SPRING
(10879)


6

COMPRESSION SPRING
(21962)


7

SETSCREW
(21963)


8

EXPANSION PIECE
(21964)


9

ADJUSTING SCREW
(21965)


10

VALVE SCREW
(21966)


11

SEALING NUT
(10215)


12

STRAIGHT PIN
(27109)


13

O-RING
(21967)


14

O-RING
(10470)


15

BACKUP RING
(10883)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
