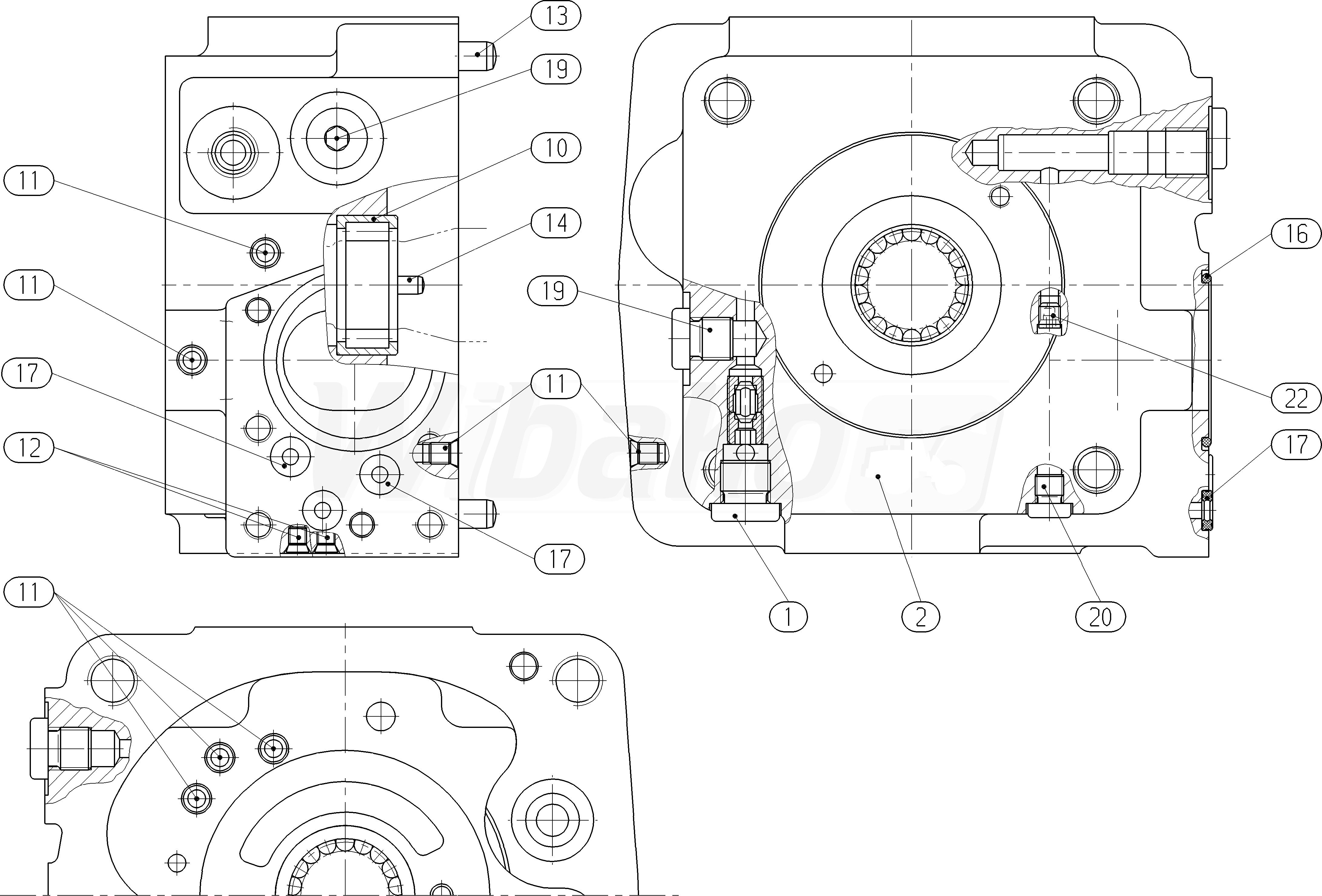

A11VO40DRX/10L-VSC12N00-S (R902097810)
CONNECTION PLATE, LL (20169)

CONNECTION PLATE, LL
(20169)


1

CONTROL ELEMENT
(20170)

Group »


2

CONNECTION PLATE, LL
(20190)


10

CYL. ROLLER BEARING
(12769)


11

DOUBLE BREAK-OFF PLUG


12

DOUBLE BREAK-OFF PLUG


13

STRAIGHT PIN
(16156)


14

STRAIGHT PIN
(12075)


16

O-RING
(20191)


17

R-RING
(20192)


19

SCREW PLUG
(11681)


20

SCREW PLUG
(14277)


22

NOZZLE
(10073)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
