A4VG145EP1DPE00/40XR-ND6T11BB2S43F00 (R902105824)

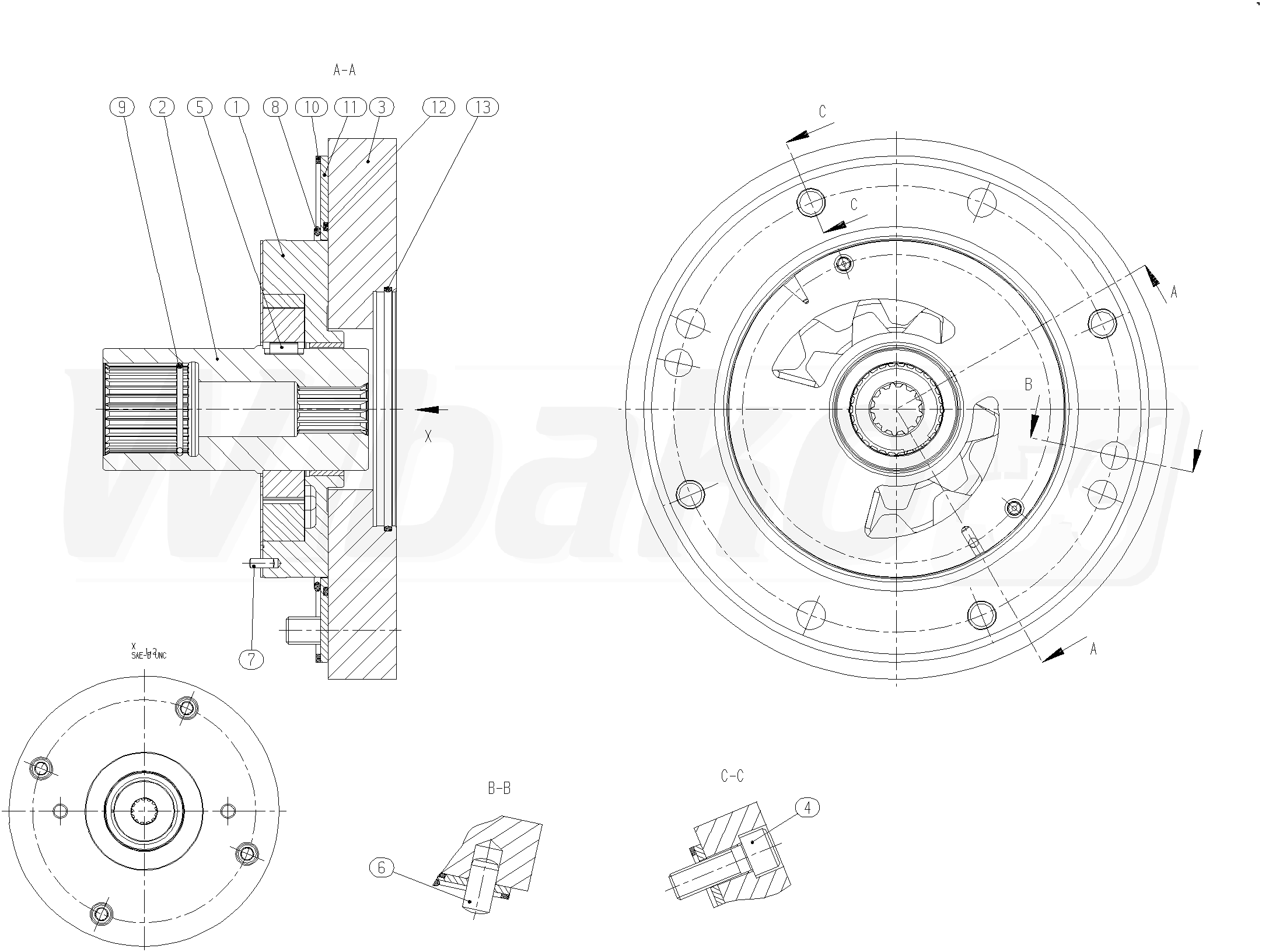

INTERNAL GEAR PUMP (33042)

INTERNAL GEAR PUMP
(33042)


1

HOUSING
(33043)

Group »


2

THROUGH DRIVE SHAFT
(33303)


3

FLANGE
(33304)


4

SOCKET HEAD CAP SCREW
(10346)


5

PARALLEL KEY
(33305)


6

STRAIGHT PIN
(33306)


7

STRAIGHT PIN
(12813)


8

O-RING
(33307)


9

SNAP RING
(26367)


10

KANTSEAL
(33308)


11

INTERMEDIATE PLATE
(32926)


12

O-RING
(33309)


13

O-RING
(12674)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
