A4VG145EP2/40+A10VO45DFR/52 (R902108247)

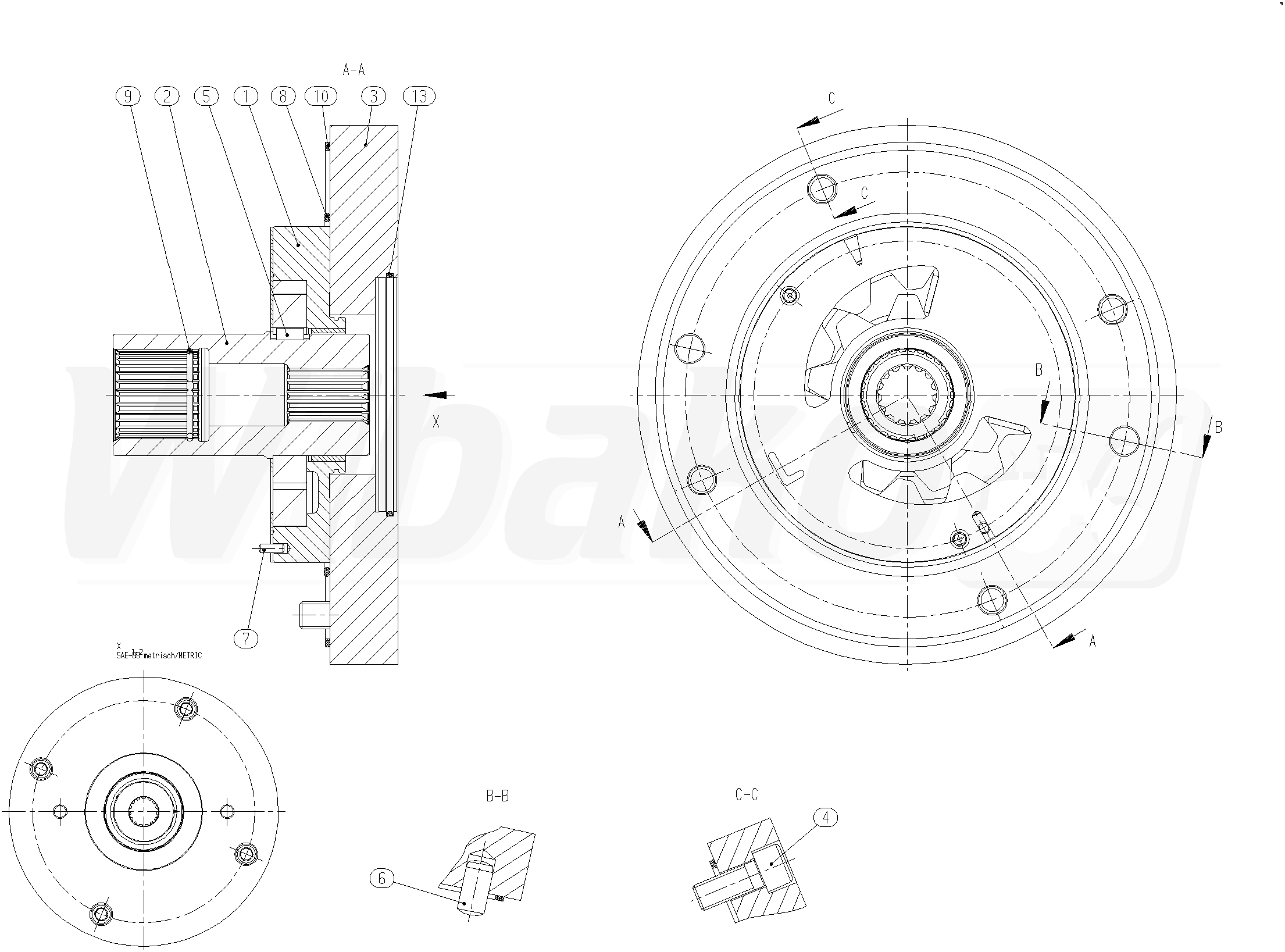

INTERNAL GEAR PUMP (33078)

INTERNAL GEAR PUMP
(33078)


1

HOUSING
(33079)

Group »


2

THROUGH DRIVE SHAFT
(33352)


3

FLANGE
(33353)


4

SOCKET HEAD CAP SCREW
(10164)


5

PARALLEL KEY
(33305)


6

STRAIGHT PIN
(33306)


7

STRAIGHT PIN
(12813)


8

O-RING
(33307)


9

SNAP RING
(26367)


10

KANTSEAL
(33308)


13

O-RING
(12674)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
