A10VG28HDDM3L/10R-NSC10F043S-S (R902025299)

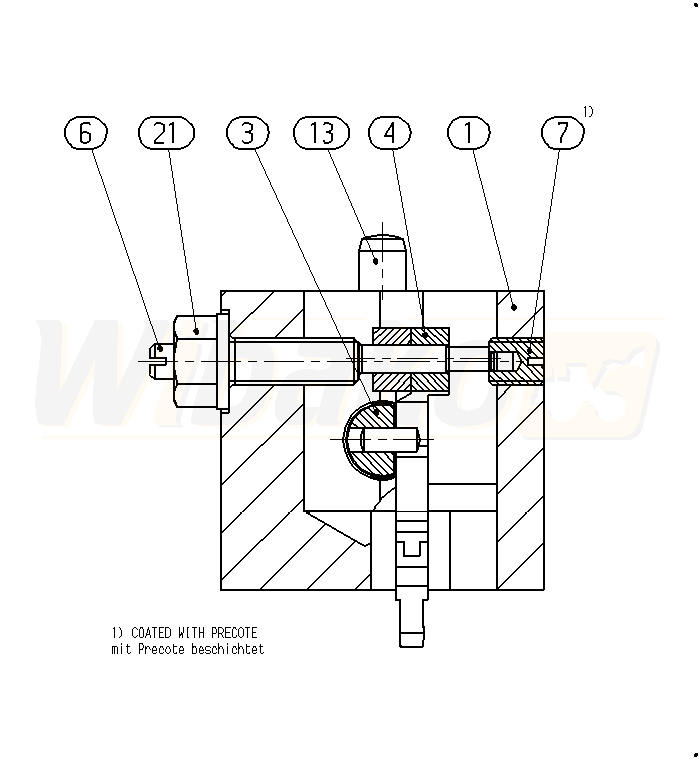

CONTROL HOUSING (139583)

CONTROL HOUSING
(139583)


1

HOUSING ASSEMBLY GROUP
(16877)


3

CONTROL PISTON
(139584)


4

LEVER
(16879)


6

ECCENTRIC PIN
(16880)


7

SETSCREW
(16881)


13

STRAIGHT PIN
(12694)


21

SEALING NUT
(10369)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
