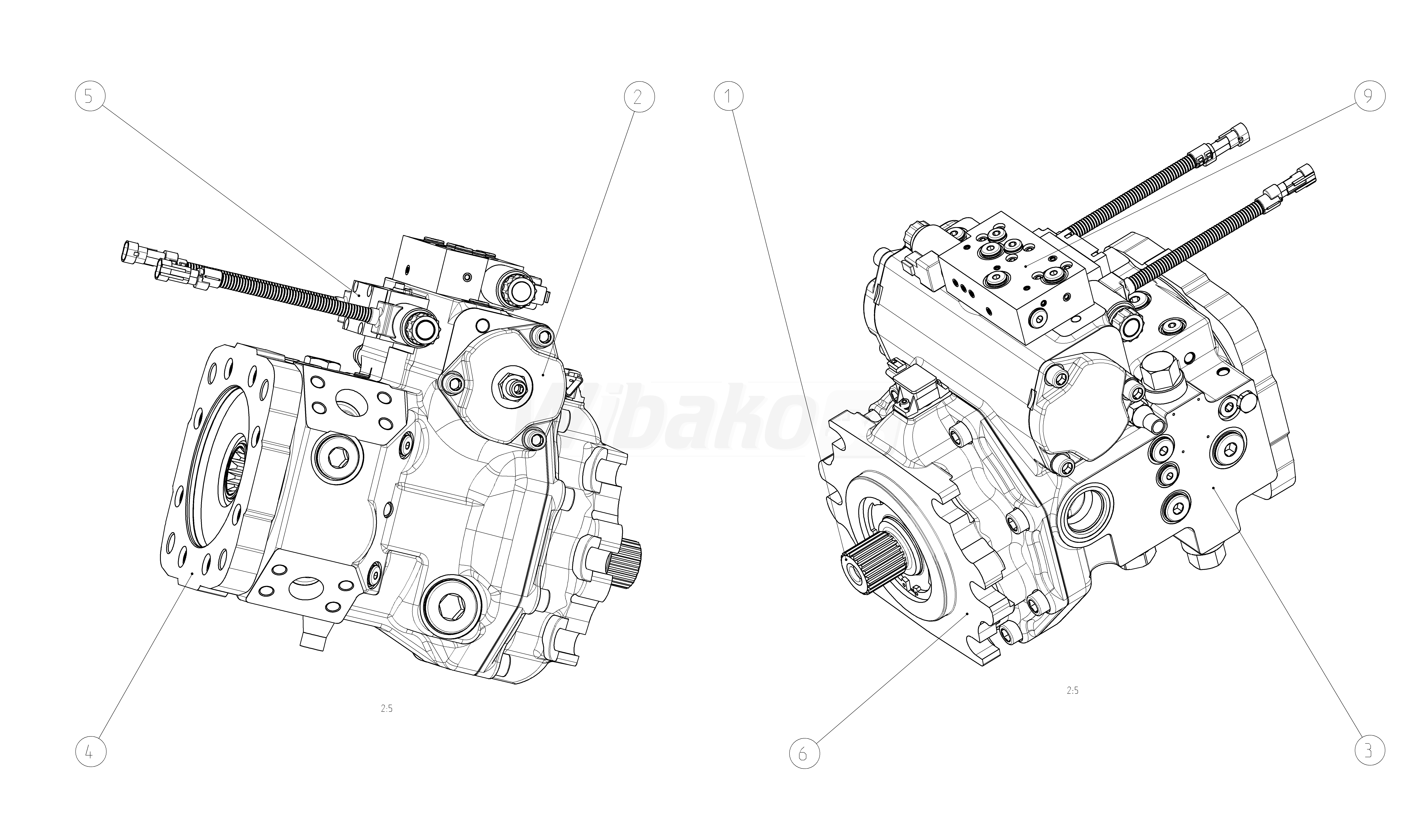

A4VG145EP1DXRN0/40MLND6A11VD4T1AS00-S (R902130349)

Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm³. Proportional control, electric U = 12 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: counter-clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Splined shaft DIN 5480 W45×2×21×9g. SAE working port A and B, on left side (45° left). High-speed rotary group, boost pump integrated, standard internal gear pump. Flange SAE J744: diameter- DDD, mounting- squarely, code- D4. Hub for splined shaft: diameter- 1 3/4 in 13T 8/16DP, code- T1. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting. Filtration in the boost pump suction line. Special version.
