A10VG28HW1/10R-NSC10K013E3-S+AZPF-11 (R902220123)

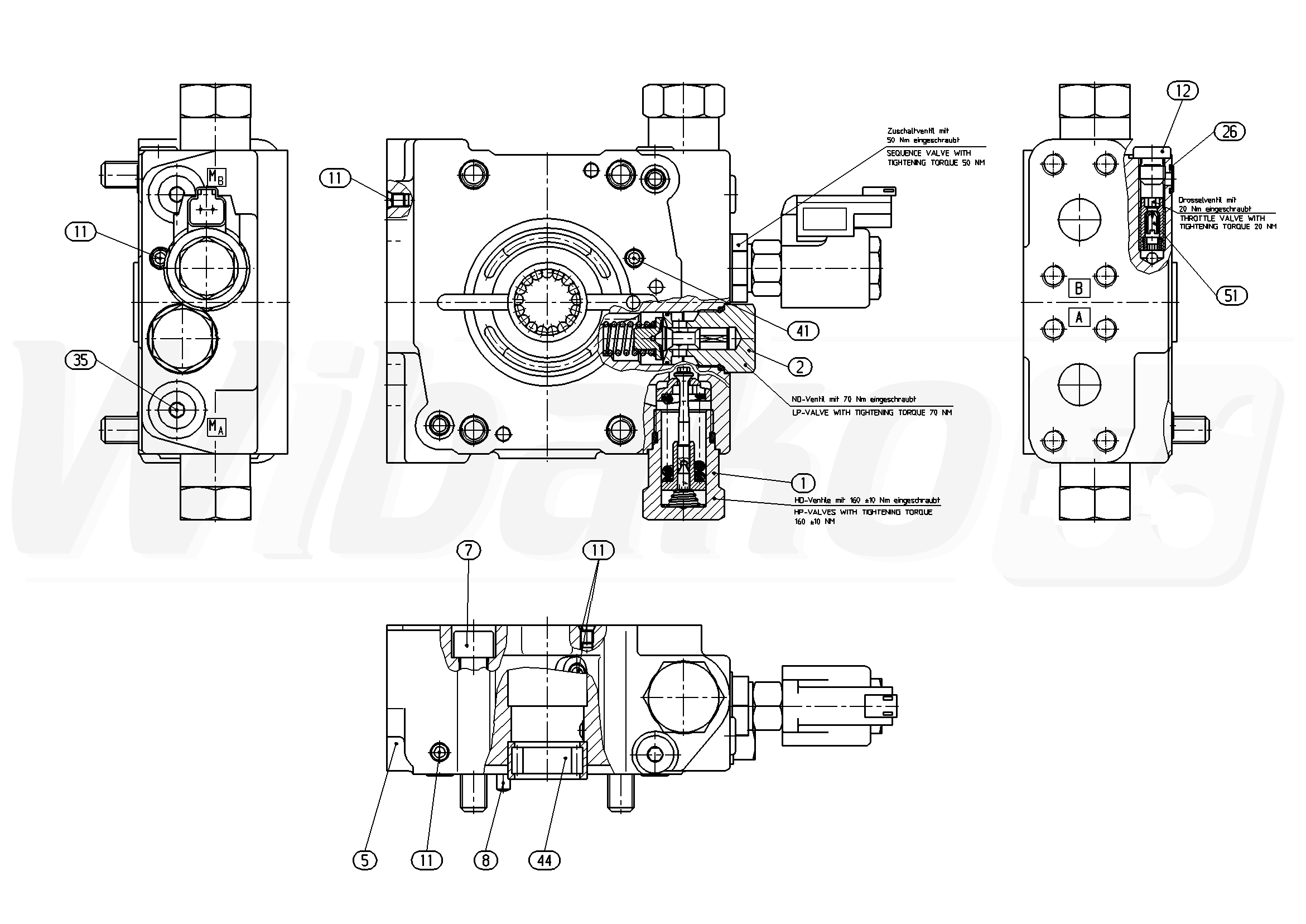

CONNECTION PLATE (139899)

CONNECTION PLATE
(139899)


1

PRESSURE RELIEF VALVE
(13952)

Group »


2

PRESSURE RELIEF VALVE
(10864)

Group »


5

CONNECTION PLATE
(16266)


7

SOCKET HEAD CAP SCREW
(11415)


8

STRAIGHT PIN
(11416)


11

DOUBLE BREAK-OFF PLUG
(18990)


12

SCREW PLUG
(16267)


26

O-RING
(10227)


35

SCREW PLUG
(10190)


41

DOUBLE BREAK-OFF PLUG
(10871)


44

CYL. ROLLER BEARING
(10185)


50

DIRECTIONAL SPOOL VALVE
(21128)


51

THROTTLE VALVE
(139896)

Group »



Return

The above diagrams belong to Rexroth www.boschrexroth.com
