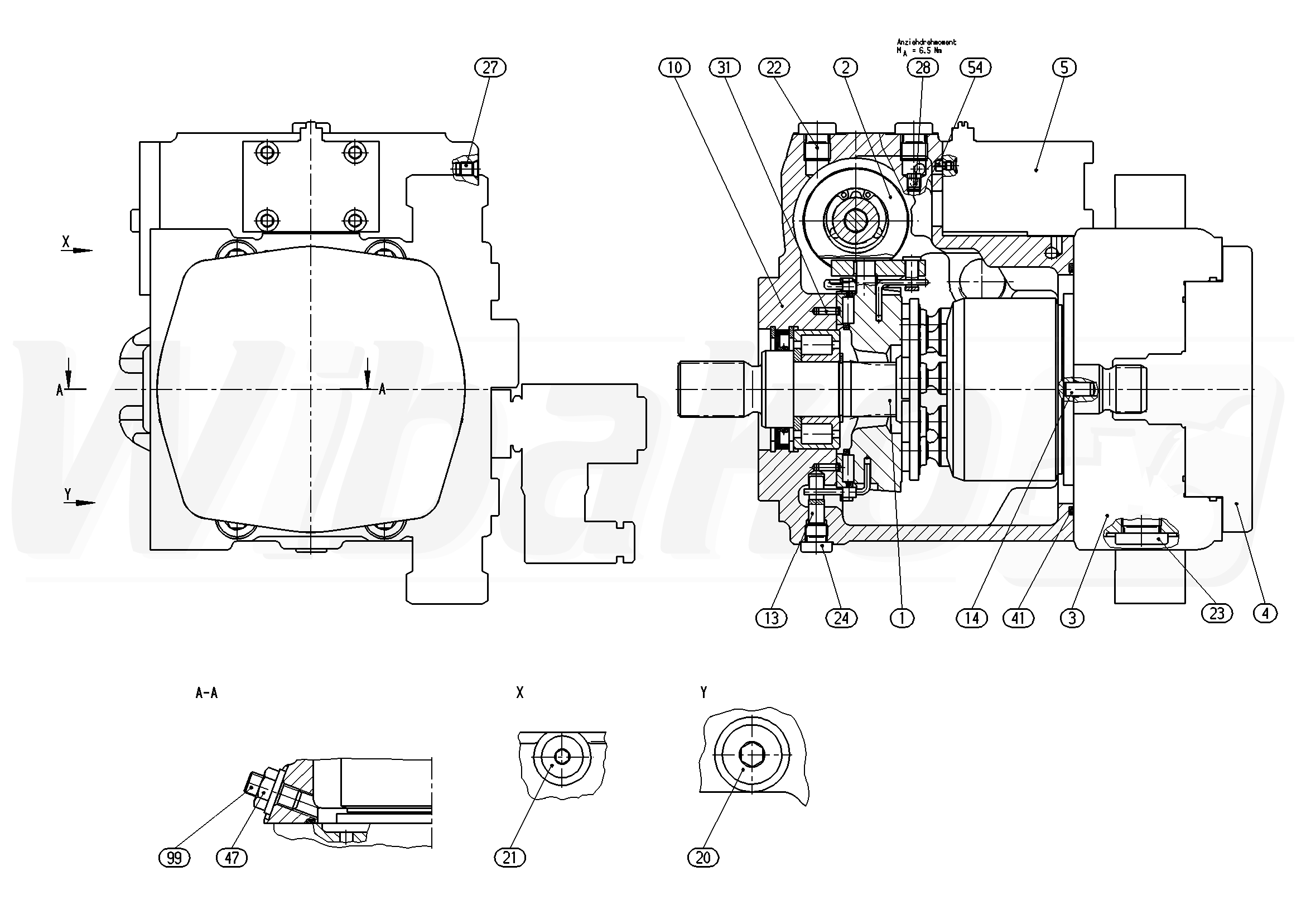

A10VG28HWL1/10R-NSC13F003S-S (R992000015)

1

ROTARY GROUP
(15995)

Group »


2

CONTROL
(16257)

Group »


3

CONNECTION PLATE
(140025)

Group »


4

INTERNAL GEAR PUMP
(15693)

Group »


5

CONTROL MODULE
(139792)

Group »


10

HOUSING
(16242)


13

PIVOT PIN
(10393)


14

STRAIGHT PIN
(11841)


20

SCREW PLUG
(10397)


21

SCREW PLUG
(10015)


22

SCREW PLUG
(10190)


24

SCREW PLUG
(10220)


27

DOUBLE BREAK-OFF PLUG
(18990)


28

NOZZLE
(10619)


31

SLOTTED SPRING PIN
(10396)


41

O-RING
(14435)


54

NOZZLE
(16261)


98

SEAL KIT
(16243)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
