A4VG145EP2DX000/40ML-ND6A11FD4T13X00 (R902103418)

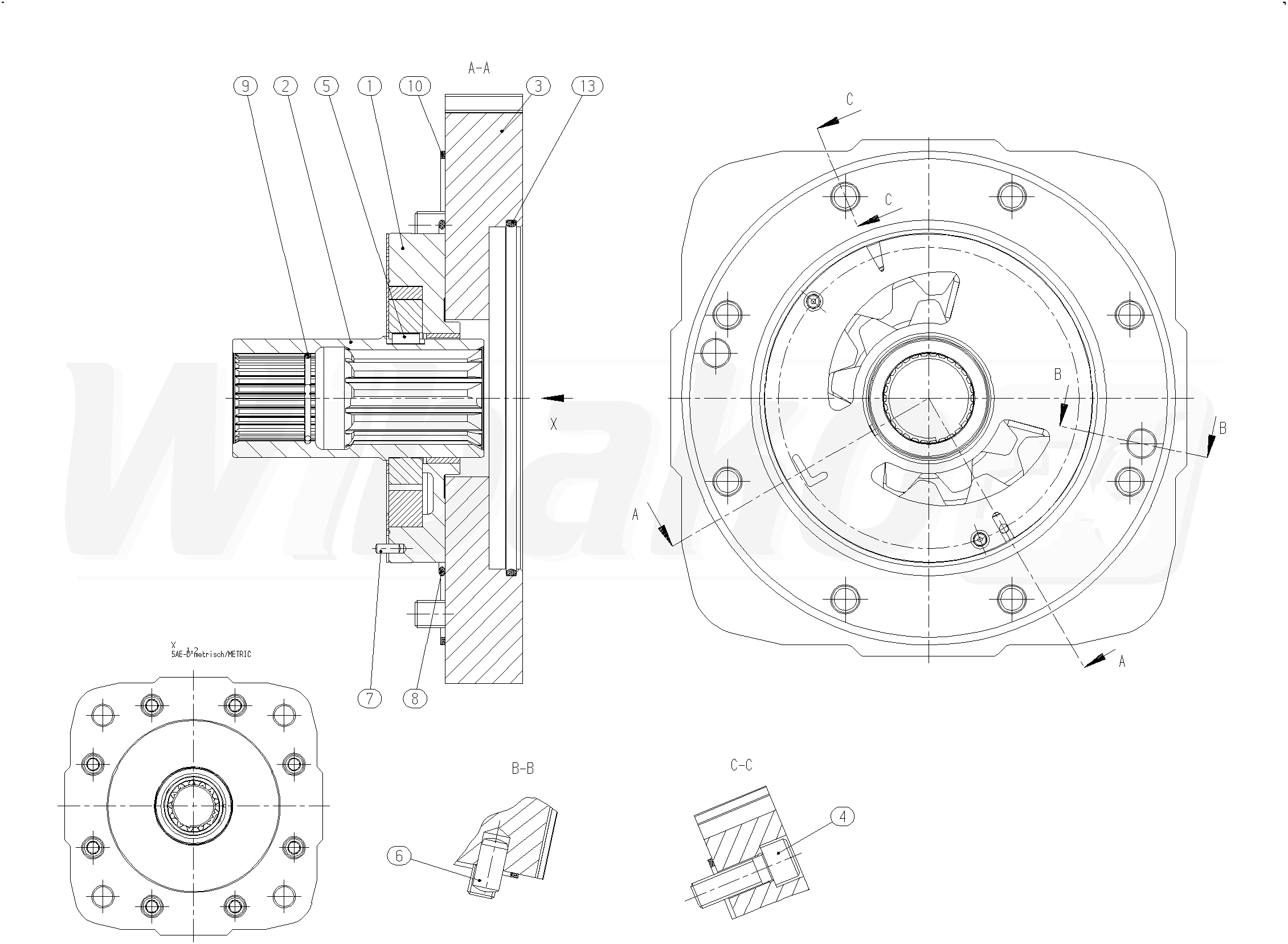

INTERNAL GEAR PUMP (33219)

INTERNAL GEAR PUMP
(33219)


1

HOUSING
(33079)

Group »


2

THROUGH DRIVE SHAFT
(33393)


3

FLANGE
(33394)


4

SOCKET HEAD CAP SCREW
(10346)


5

PARALLEL KEY
(33305)


6

STRAIGHT PIN
(33306)


7

STRAIGHT PIN
(12813)


8

O-RING
(33307)


9

SNAP RING
(26367)


10

KANTSEAL
(33308)


13

O-RING
(26346)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
