A4VG145EP2DX000/40ML-ND6A11F00003X00 (R902103420)

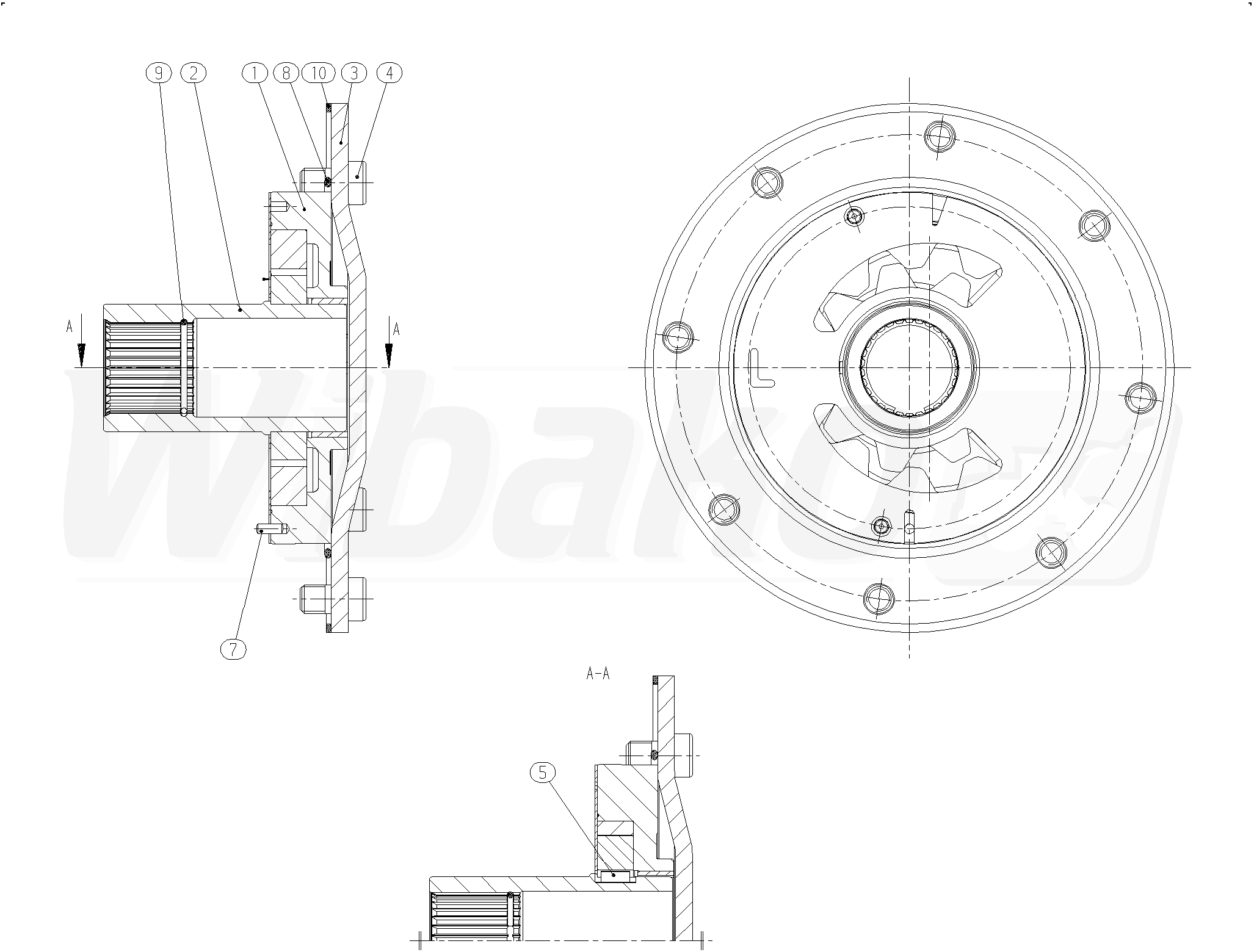

INTERNAL GEAR PUMP (33231)

INTERNAL GEAR PUMP
(33231)


1

HOUSING
(33079)

Group »


2

PLUG-IN SHAFT
(33319)


3

COVER
(32918)


4

SOCKET HEAD CAP SCREW
(33320)


5

PARALLEL KEY
(33305)


7

STRAIGHT PIN
(12813)


8

O-RING
(33307)


9

SNAP RING
(26367)


10

KANTSEAL
(33308)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
