A4VG145EP2XP0T0/40DR+A4VG145EP2XP0T0/40 (R902152536)
Set of 2 pumps:
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, electric U = 24 V. Series 40. Filtration in the boost pump pressure line. Ports for external boost circuit filtration (Fe and Fa).
2. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, electric U = 24 V. Series 40.
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, electric U = 24 V. Series 40. Filtration in the boost pump pressure line. Ports for external boost circuit filtration (Fe and Fa).
2. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, electric U = 24 V. Series 40.

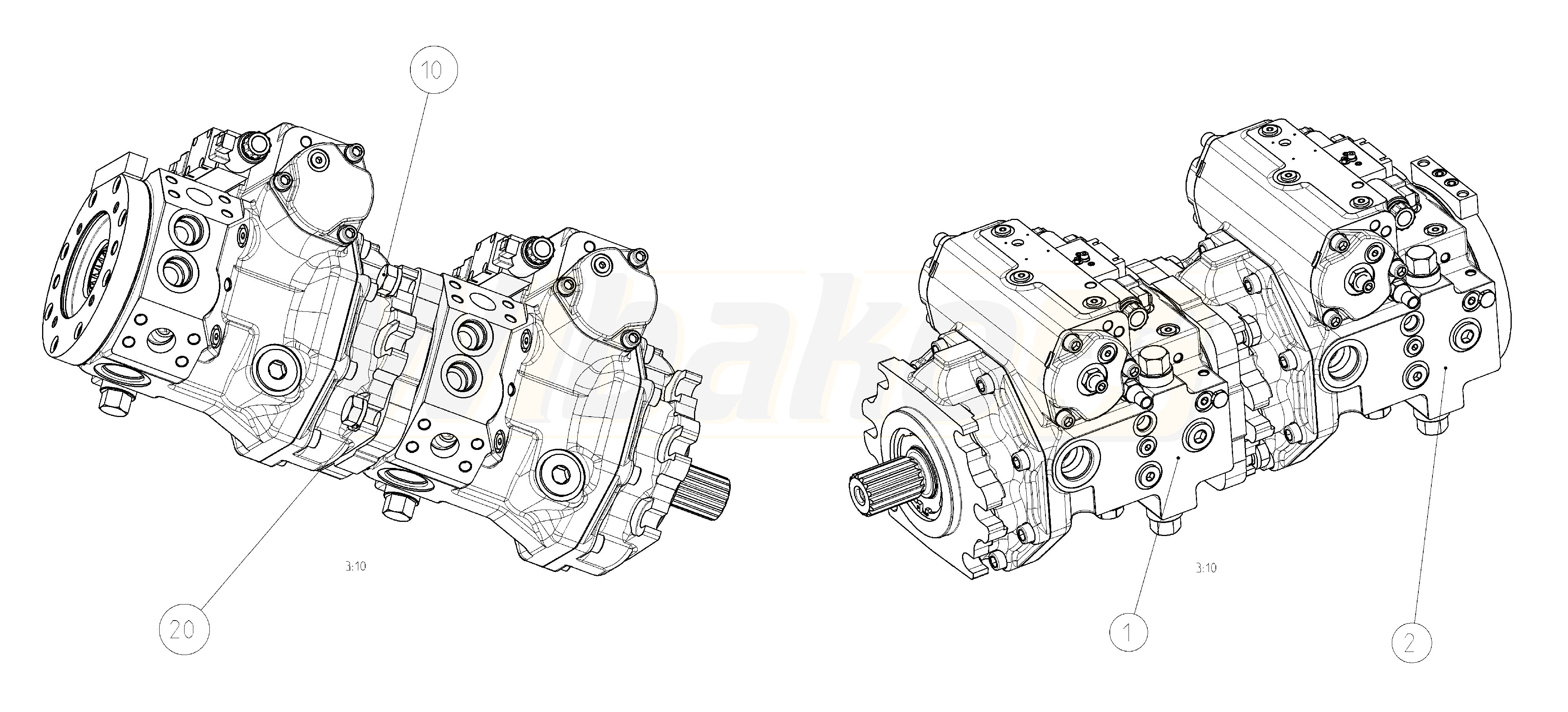

The above diagrams belong to Rexroth www.boschrexroth.com
