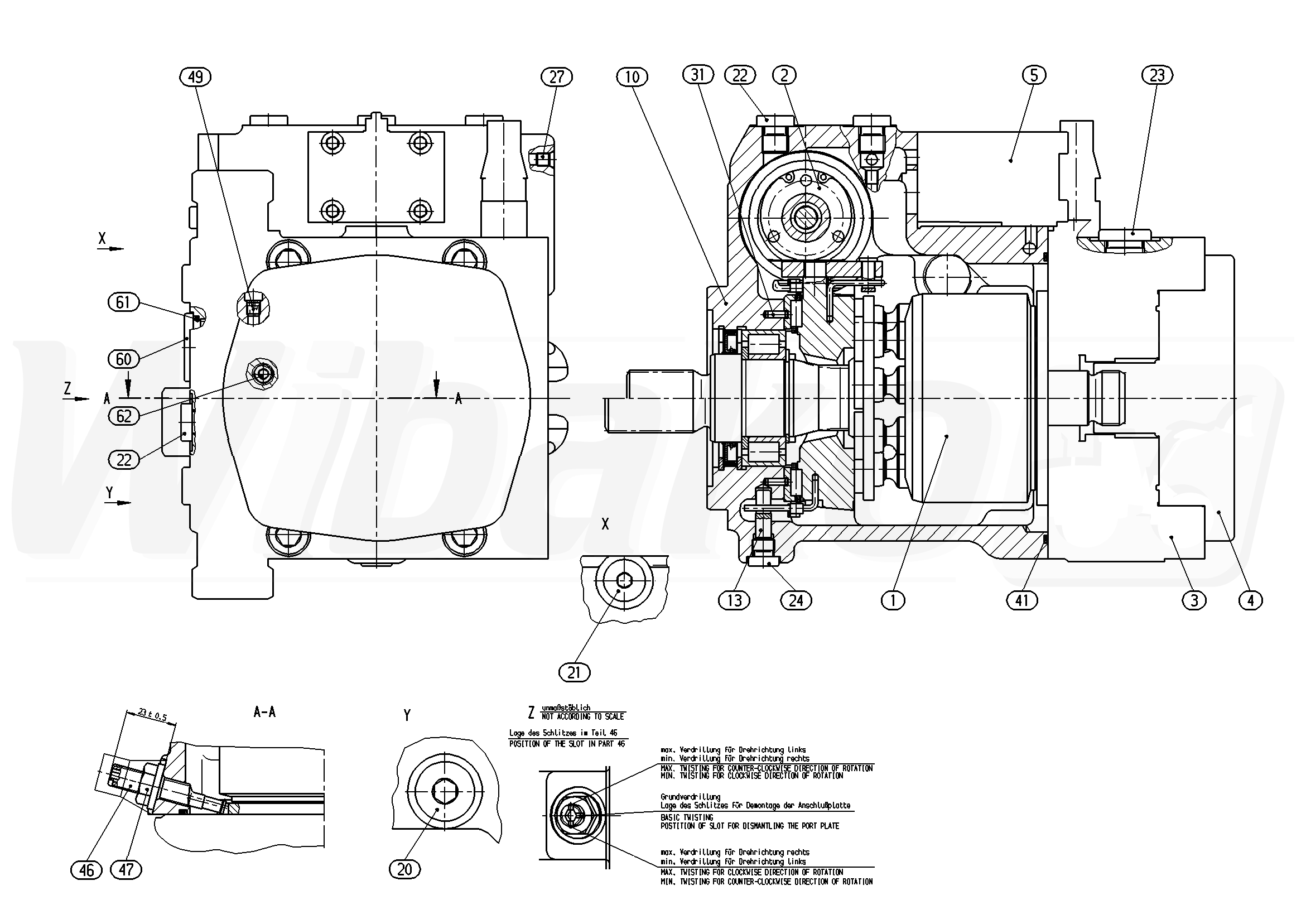

A10VG45DE1D1/10R-NSC10F015SH-S (R902064405)

1

ROTARY GROUP
(13629)

Group »


2

CONTROL
(25653)

Group »


3

CONNECTION PLATE
(13631)

Group »


4

INTERNAL GEAR PUMP
(13632)

Group »


5

DIRECTIONAL-CONTROL VALVE
(35381)

Group »


10

HOUSING
(13634)


13

PIVOT PIN
(10393)


20

SCREW PLUG
(10397)


21

SCREW PLUG
(10015)


22

SCREW PLUG
(10190)


23

SCREW PLUG
(10090)


24

SCREW PLUG
(10220)


27

DOUBLE BREAK-OFF PLUG
(18990)


31

SLOTTED SPRING PIN
(10396)


41

O-RING
(13635)


46

ECCENTRIC SCREW
(13636)


47

SEALING NUT
(10815)


49

NOZZLE
(10618)


60

SCREW PLUG
(11752)


61

O-RING
(10470)


62

SCREW PLUG
(11753)
