A10VG45EF1D1/10R-NSC10F005SP-S (R902164335)

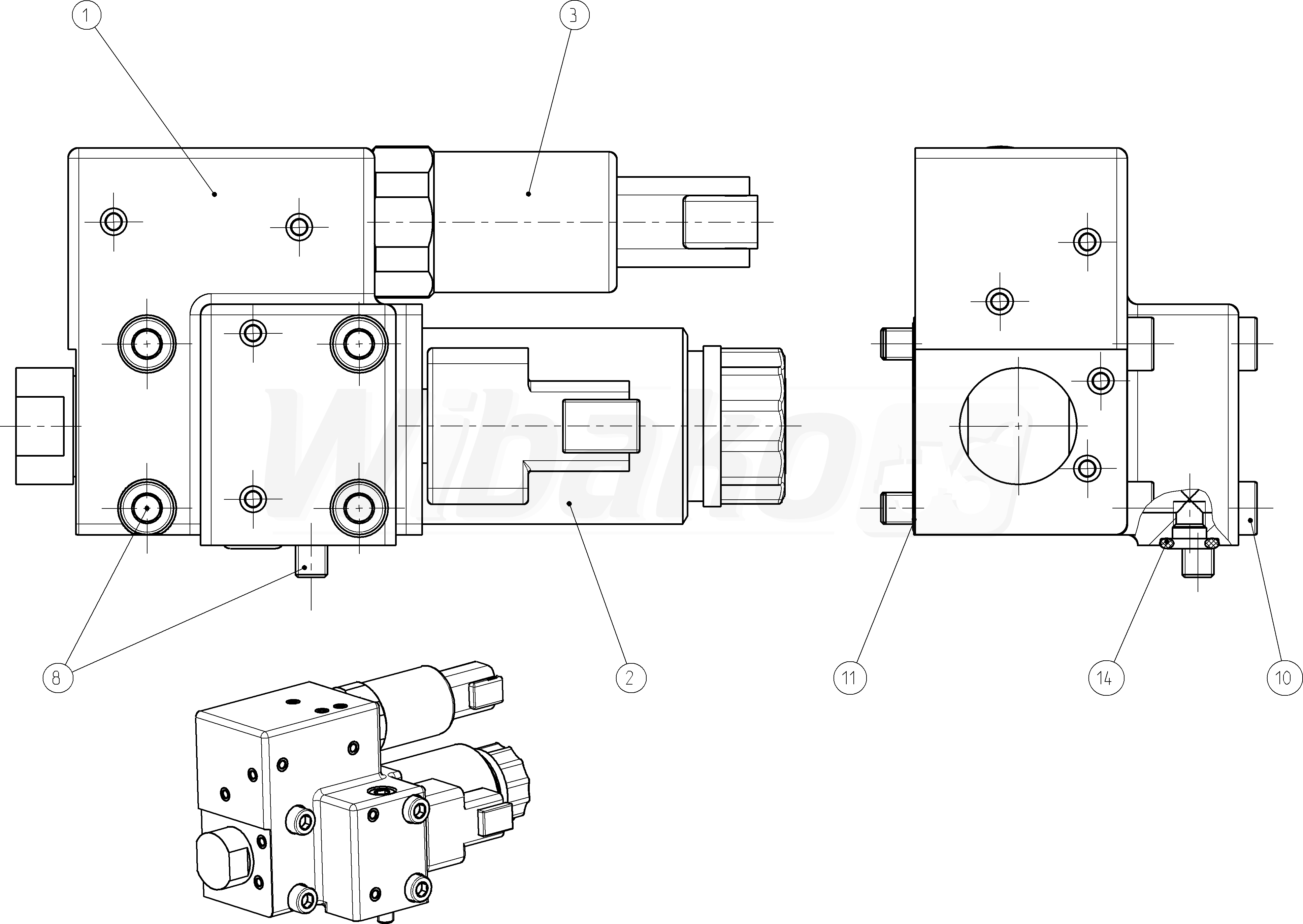

CONTROL MODULE (138259)

CONTROL MODULE
(138259)


1

VALVE HOUSING
(26571)

Group »


2

SWITCHING SOLENOID
(16647)


3

PRESSURE REDUCING VALVE
(31515)


8

SOCKET HEAD CAP SCREW
(10904)


10

SOCKET HEAD CAP SCREW
(12219)


11

SEAL
(10783)


14

O-RING
(10188)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
