A10VG45EF2D1/10R-NSC10F025DP (R902223321)

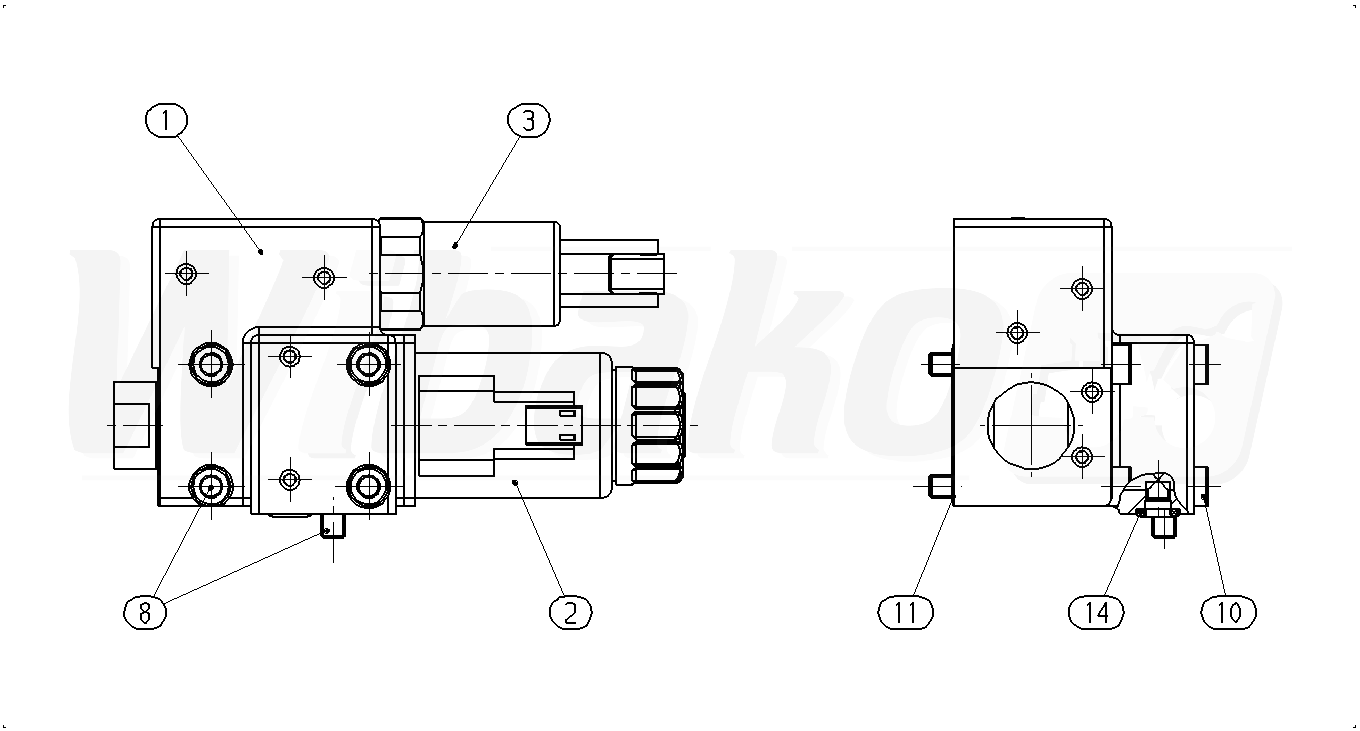

CONTROL MODULE (26570)

CONTROL MODULE
(26570)


1

VALVE HOUSING
(26571)

Group »


2

SWITCHING SOLENOID
(11168)


3

PRESSURE REDUCING VALVE
(16132)


8

SOCKET HEAD CAP SCREW
(10904)


10

SOCKET HEAD CAP SCREW
(12219)


11

SEAL
(10783)


14

O-RING
(10188)


98

SEAL KIT
(10683)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
