A4VG110EV2DCR00/40JRND6T11FC1S7AD00-Y (R902161927)

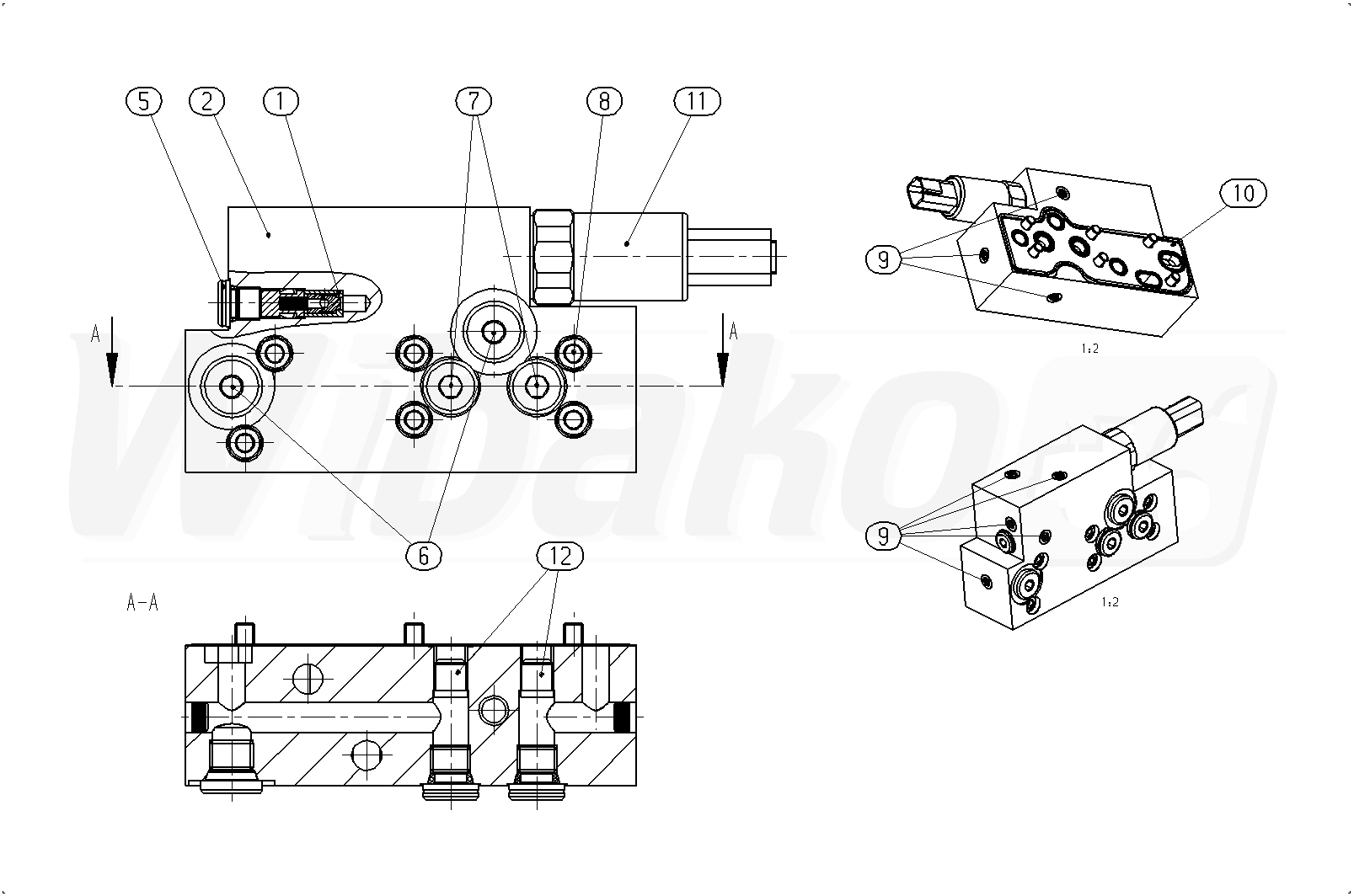

PRESSURE REDUCING VALVE (33586)

PRESSURE REDUCING VALVE
(33586)


1

CHECK VALVE
(16125)


2

VALVE HOUSING
(33826)


5

SCREW PLUG
(16127)


6

SCREW PLUG
(14990)


7

SCREW PLUG
(13317)


8

SOCKET HEAD CAP SCREW
(16129)


9

SEALING PLUG
(16130)


10

SEAL
(16131)


11

PRESSURE REDUCING VALVE
(16132)


12

NOZZLE
(10400)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
