A4VG145EP1DX0U0/40NLND6A11V0000AS00-S (R902167220)

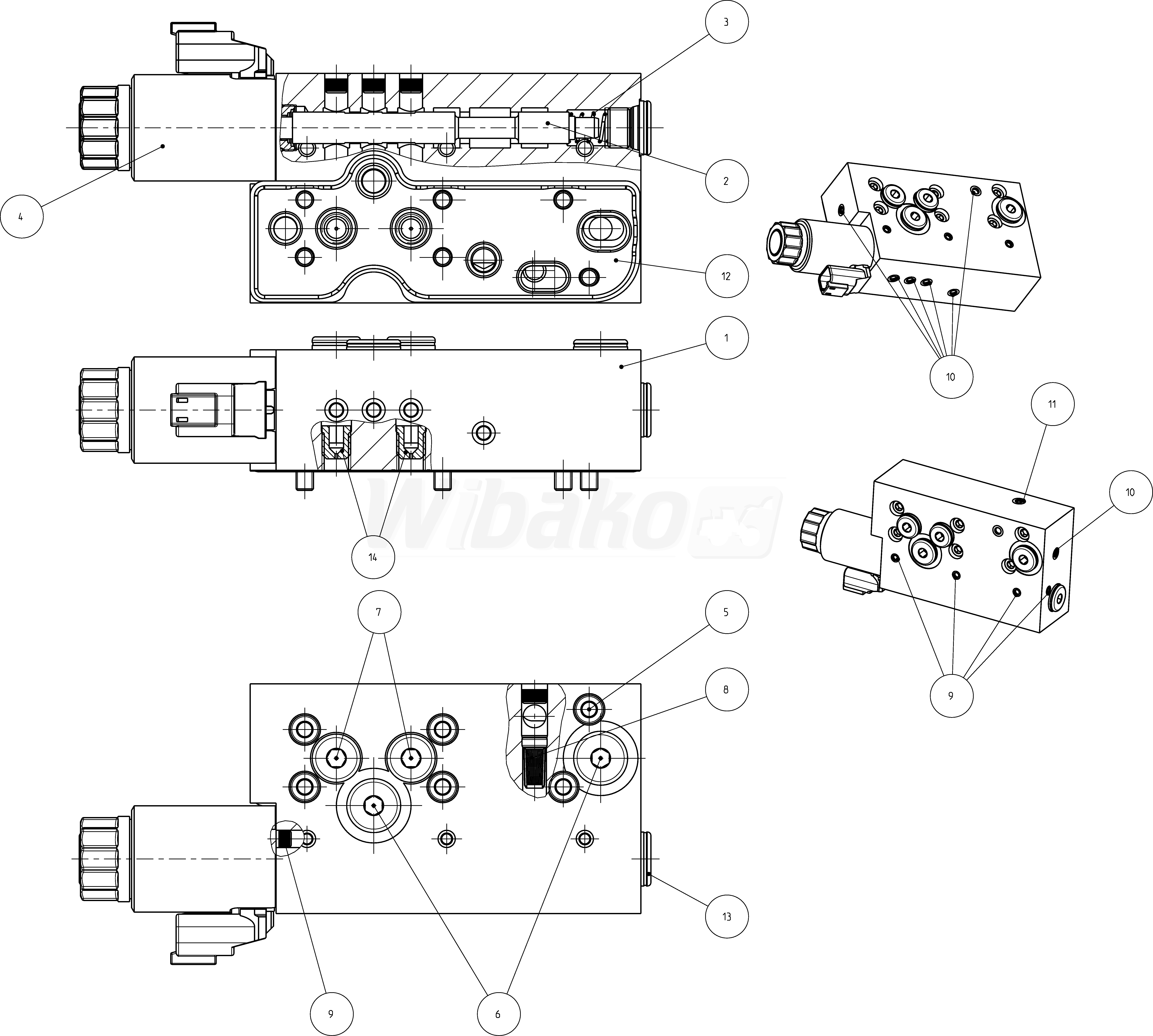

UNLOADING VALVE (33690)

UNLOADING VALVE
(33690)


1

VALVE HOUSING
(33882)


2

VALVE SPOOL
(32163)


3

COMPRESSION SPRING
(31907)


4

SWITCHING SOLENOID
(11168)


5

SOCKET HEAD CAP SCREW
(16129)


6

SCREW PLUG
(10015)


7

SCREW PLUG
(16086)


8

FILTER
(16090)


9

SEALING PLUG
(26040)


10

SEALING PLUG
(31908)


11

SEALING PLUG
(16130)


12

SEAL
(16131)


13

SCREW PLUG
(16080)


14

NOZZLE
(13378)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
