A4VG145EP20PR00/40MLND6A11UB2S4AE40-S (R902167280)

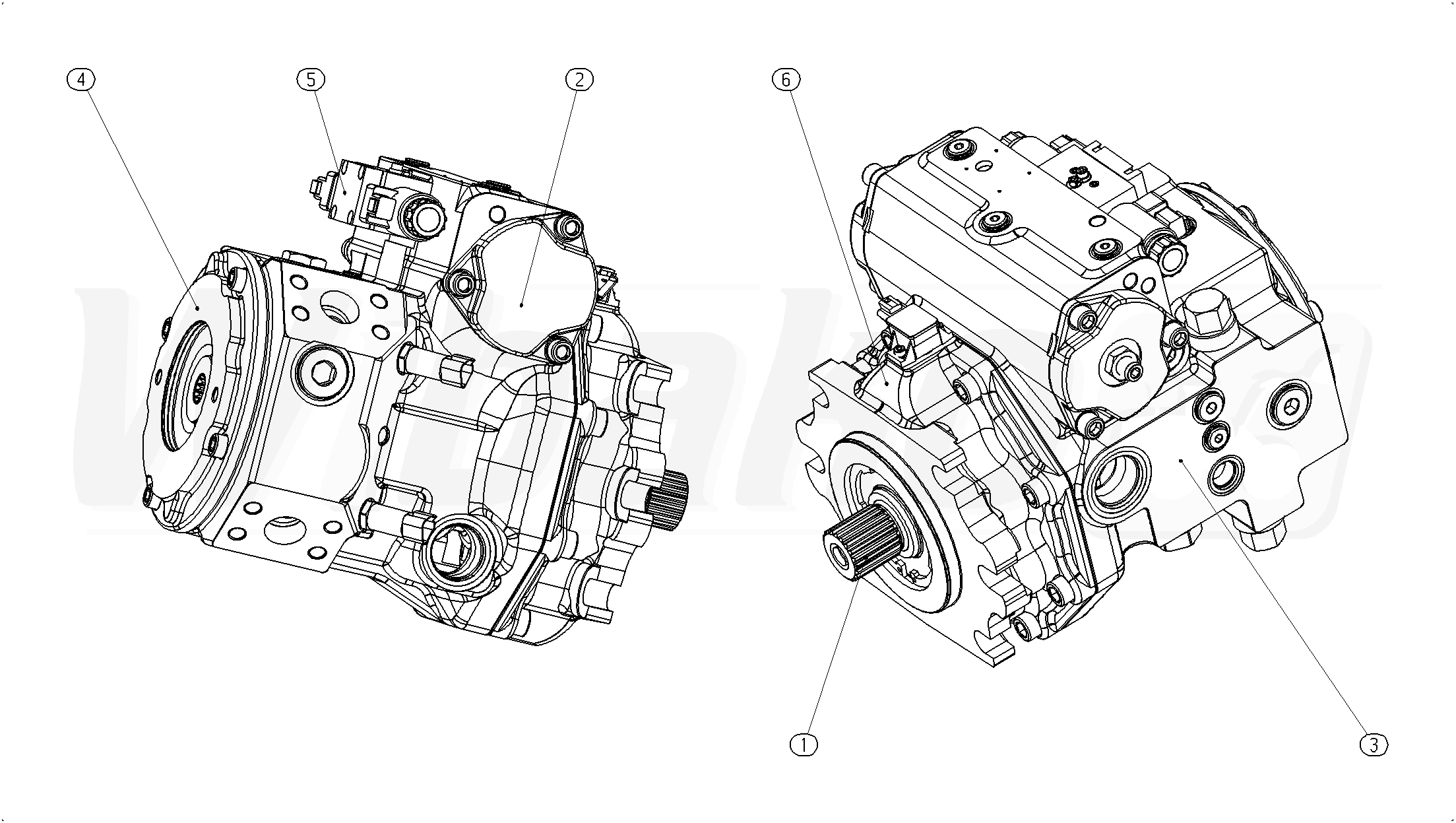

Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm³. Proportional control, electric U = 24 V. Without pressure cut-off, without bypass. DEUTSCH molded connector, 2-pin – without suppressor diode. Electric swivel angle sensor (DWS20-1, 3-pin). Without additional function. Without DA control valve. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: counter-clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Splined shaft DIN 5480 W45×2×21×9g. SAE working port A and B, on left side (45° left). Standard rotary group, without boost pump. Flange SAE J744: diameter- 101-2 (B), mounting- horizontal, code- B2. Hub for splined shaft: diameter- 7/8 in 13T 16/32DP, code- S4. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting. External boost pressure supply. Witch pressure sensors at the measuring ports M_A and M_B (high pressure). Special version.
