A4VG210EP2DP0R0/40ARNE4T31FD4T1AF00-0 (R902132959)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 210 cm3. Proportional control, electric U = 24 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. DEUTSCH molded connector, 2-pin – without suppressor diode. Without swivel angle sensor. Neutral valve U = 12 V and ports X3 , X4 for stroking chamber pressure. Without DA control valve. Series 40. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting.

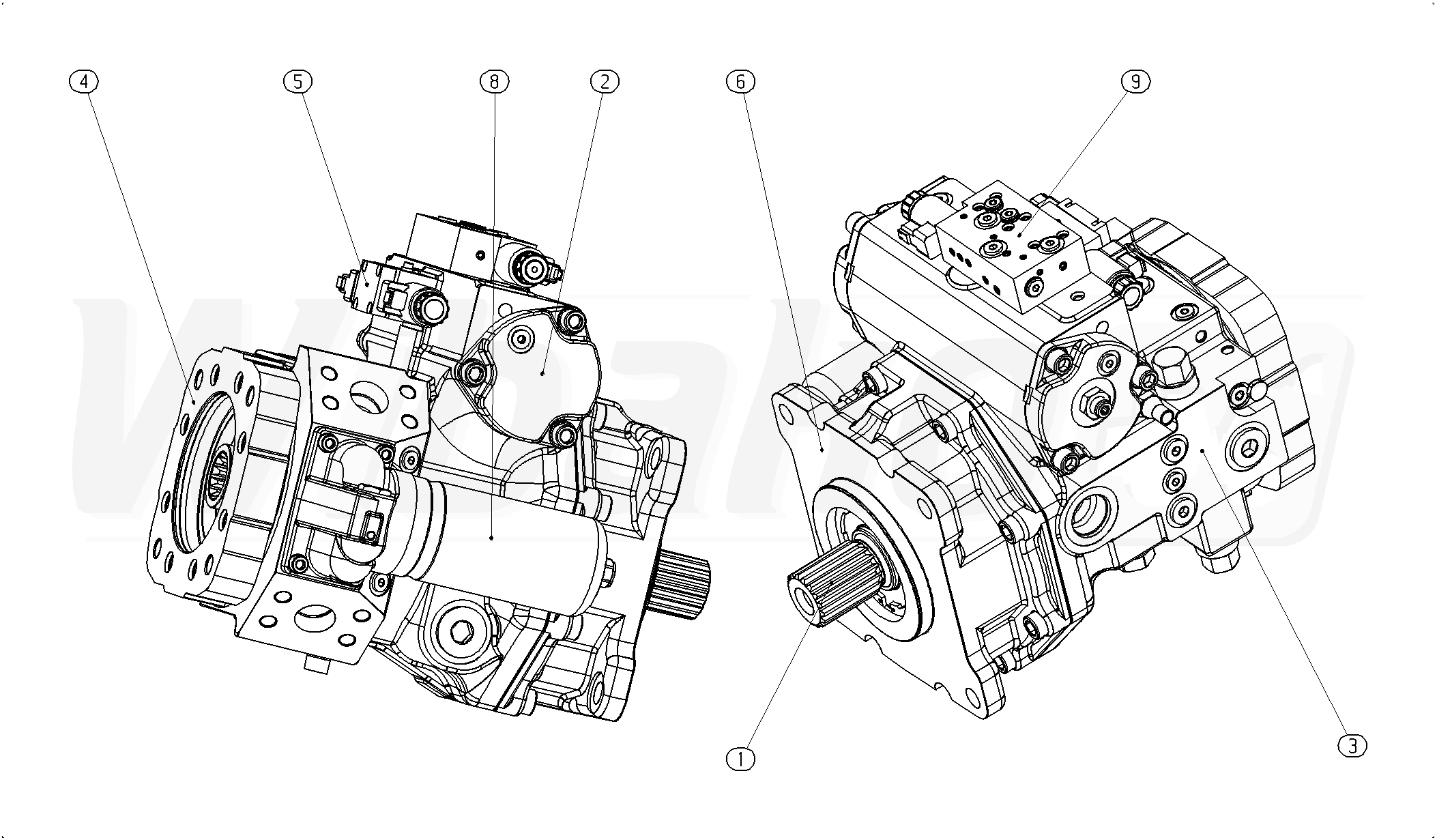

The above diagrams belong to Rexroth www.boschrexroth.com
