A10VG45HW1/10R-NXC10N005E-S (R902029900)

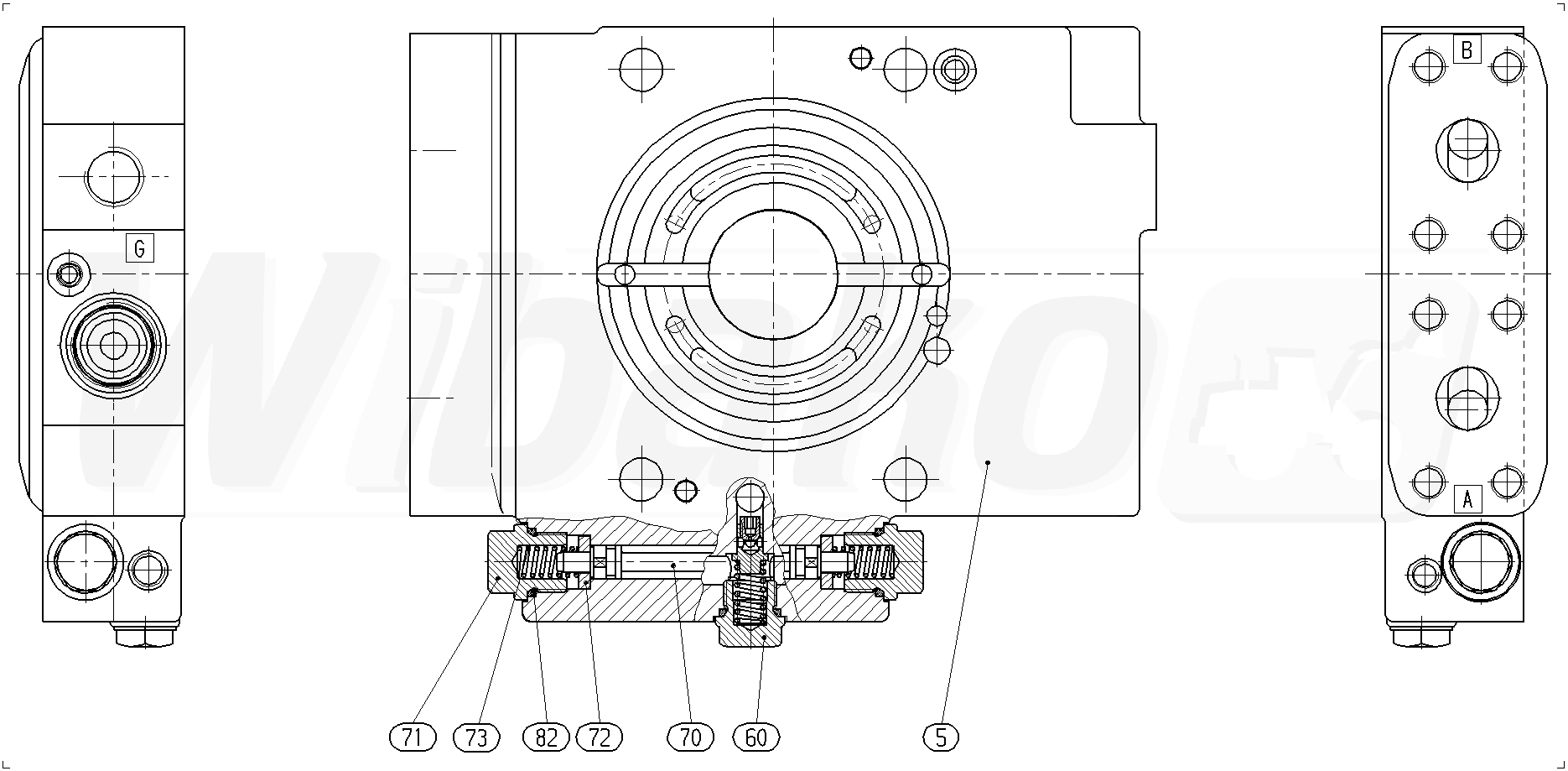

CONNECTION PLATE (143118)

CONNECTION PLATE
(143118)


5

CONNECTION PLATE
(143119)


60

PRESSURE RELIEF VALVE
(139921)

Group »


70

FLUSHING PISTON
(13780)


71

SCREW PLUG
(11712)


72

WASHER
(11714)


73

COMPRESSION SPRING
(11715)


82

O-RING
(11719)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
