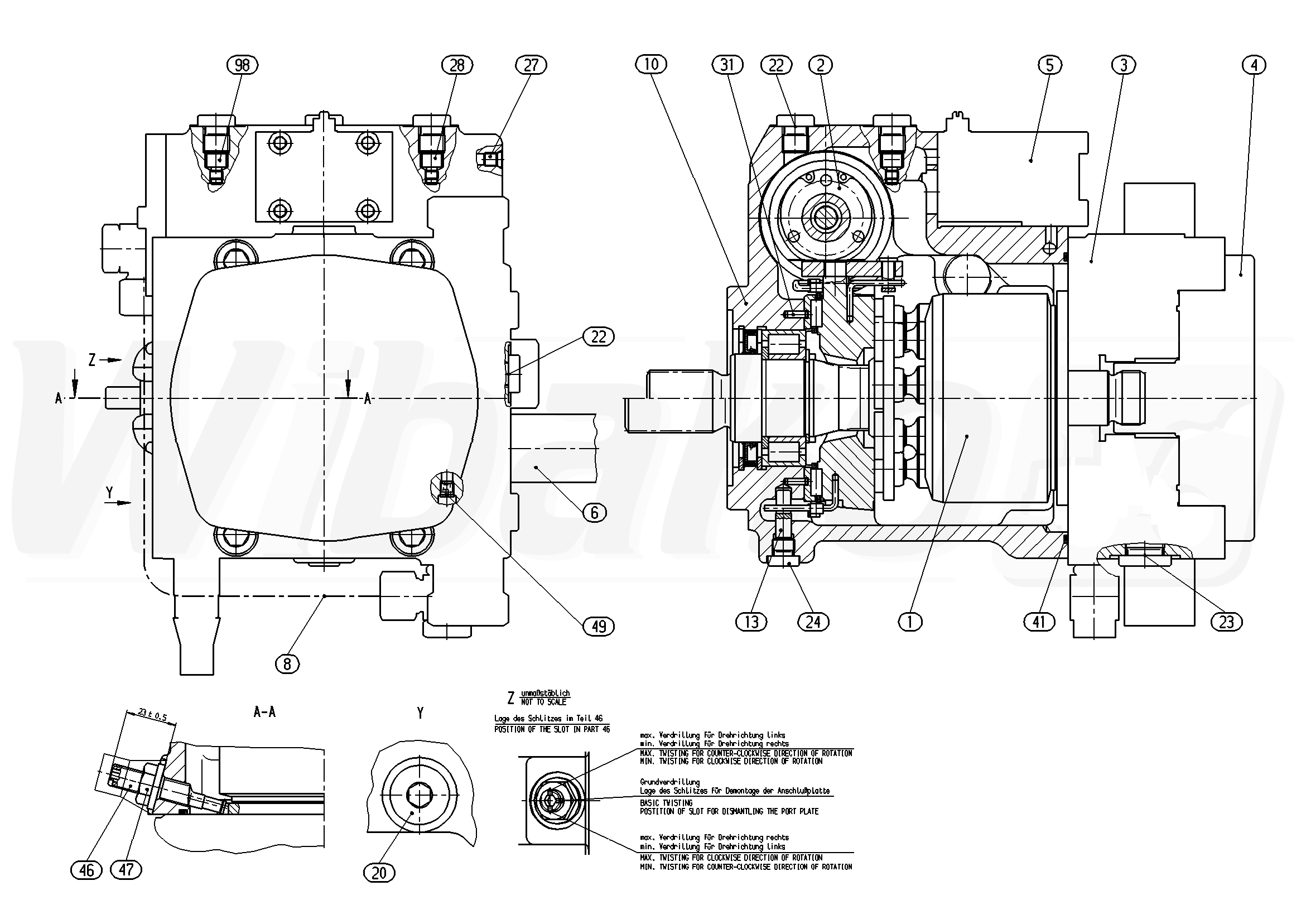

A10VG45HWD2/10L-NSC13F023S-S (R902015535)

1

ROTARY GROUP
(22387)

Group »


2

CONTROL
(140129)

Group »


3

CONNECTION PLATE
(15964)

Group »


4

INTERNAL GEAR PUMP
(20296)

Group »


5

CONTROL MODULE
(20244)

Group »


6

CONTROL CARTRIDGE
(11367)

Group »


8

HYDRAULIC LINE
(140289)

Group »


10

HOUSING
(140096)


13

PIVOT PIN
(10393)


20

SCREW PLUG
(10397)


22

SCREW PLUG
(10190)


23

SCREW PLUG
(10090)


24

SCREW PLUG
(10220)


27

DOUBLE BREAK-OFF PLUG
(18990)


28

THROTTLE VALVE
(42315)

Group »


31

SLOTTED SPRING PIN
(10396)


41

O-RING
(13635)


46

ECCENTRIC SCREW
(13636)


47

SEALING NUT
(10815)


49

NOZZLE
(10618)


98

THROTTLE VALVE
(143178)

Group »


98

SEAL KIT
(20346)
