A10VG45HWL1/10R-NSCXXK013E-S (R902062080)

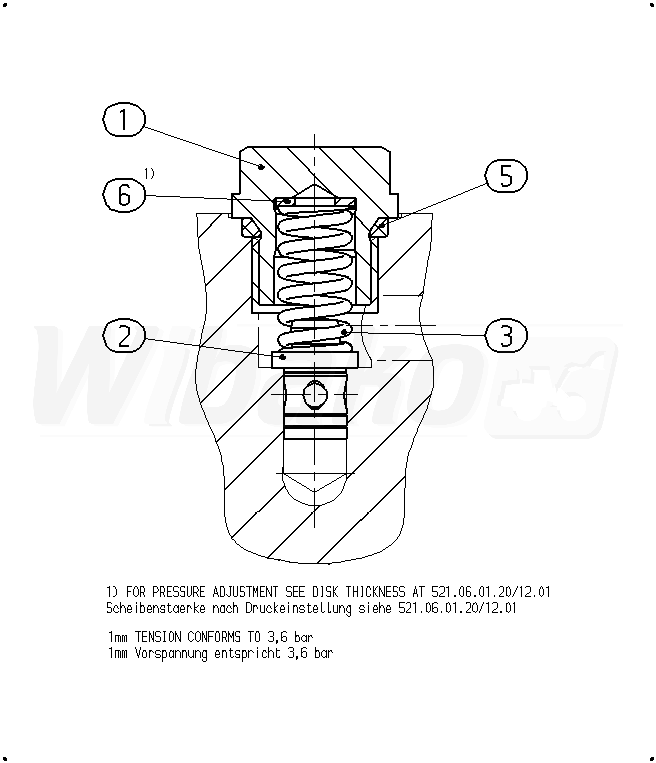

PRESSURE RELIEF VALVE (139943)

PRESSURE RELIEF VALVE
(139943)


1

SCREW PLUG
(53977)


2

VALVE SPOOL
(139944)


3

COMPRESSION SPRING
(16853)


5

O-RING
(11092)


6

SHIM RING
(16854)


6

SHIM RING
(16855)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
