A10VG63DE2D1/10R-NSC10F015SH-S (R902064213)

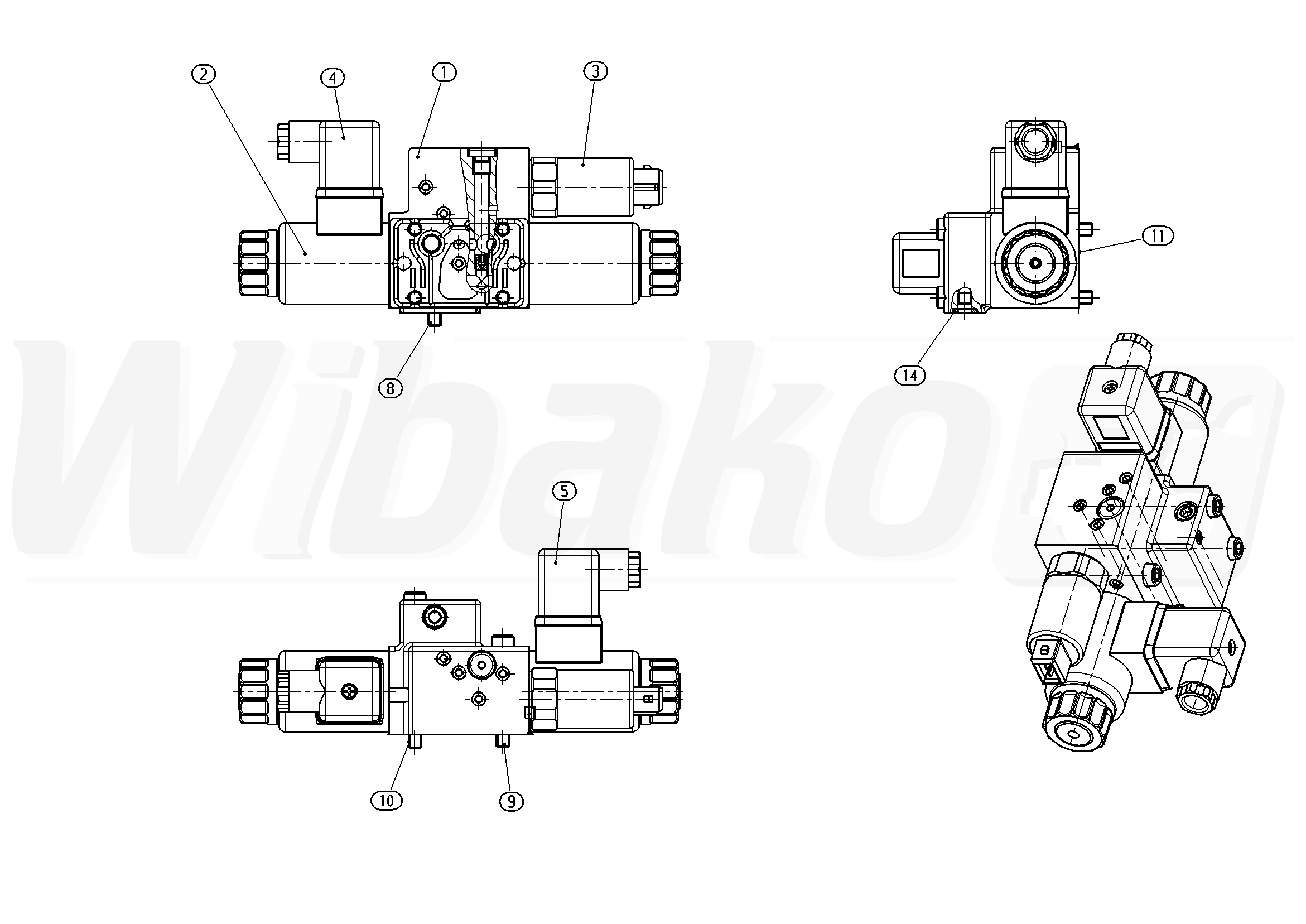

DIRECTIONAL-CONTROL VALVE (25893)

DIRECTIONAL-CONTROL VALVE
(25893)


1

VALVE HOUSING
(25305)

Group »


2

SWITCHING SOLENOID
(13193)


3

PRESSURE REDUCING VALVE
(11170)


4

PLUG-IN CONNECTOR
(10519)


5

PLUG-IN CONNECTOR
(10518)


8

SOCKET HEAD CAP SCREW
(10904)


9

SOCKET HEAD CAP SCREW
(10904)


10

SOCKET HEAD CAP SCREW
(12219)


11

SEAL
(10783)


14

O-RING
(10188)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
