A10VG63DG1/10R-NSC10K013E (R902029999)

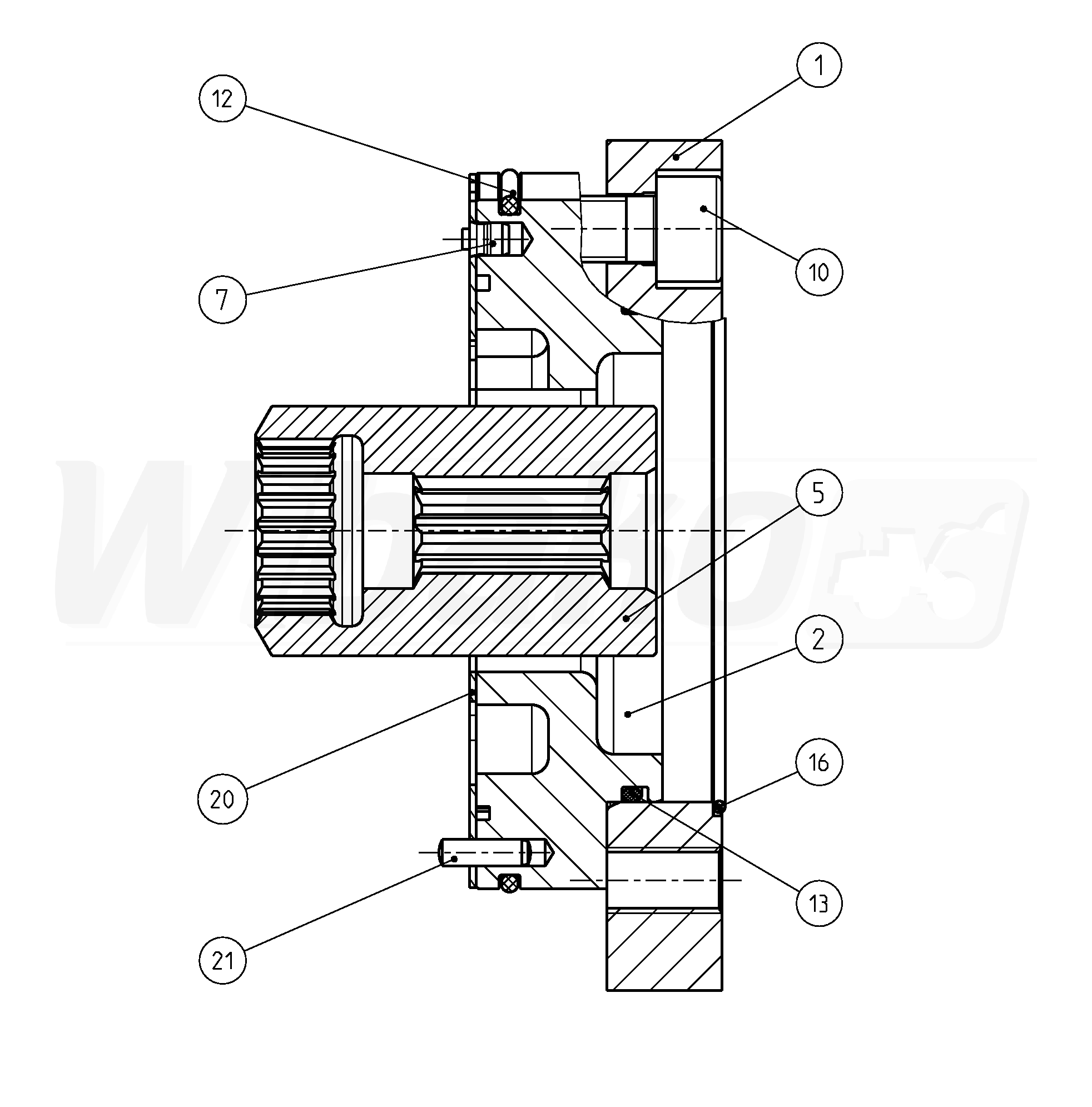

BELL HOUSING (143492)

BELL HOUSING
(143492)


1

INTERMEDIATE FLANGE
(13680)


2

SEAL RING
(143424)


5

THROUGH DRIVE COUPLING
(77302)


7

HOLDING PLUG
(13687)


10

SOCKET HEAD CAP SCREW
(11583)


12

O-RING
(12935)


13

O-RING
(13683)


16

O-RING
(26147)


20

WEAR PLATE
(21108)


21

STRAIGHT PIN
(21105)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
