A10VG63EP4D1/10L-NTC10K043EP-S (R992000474)

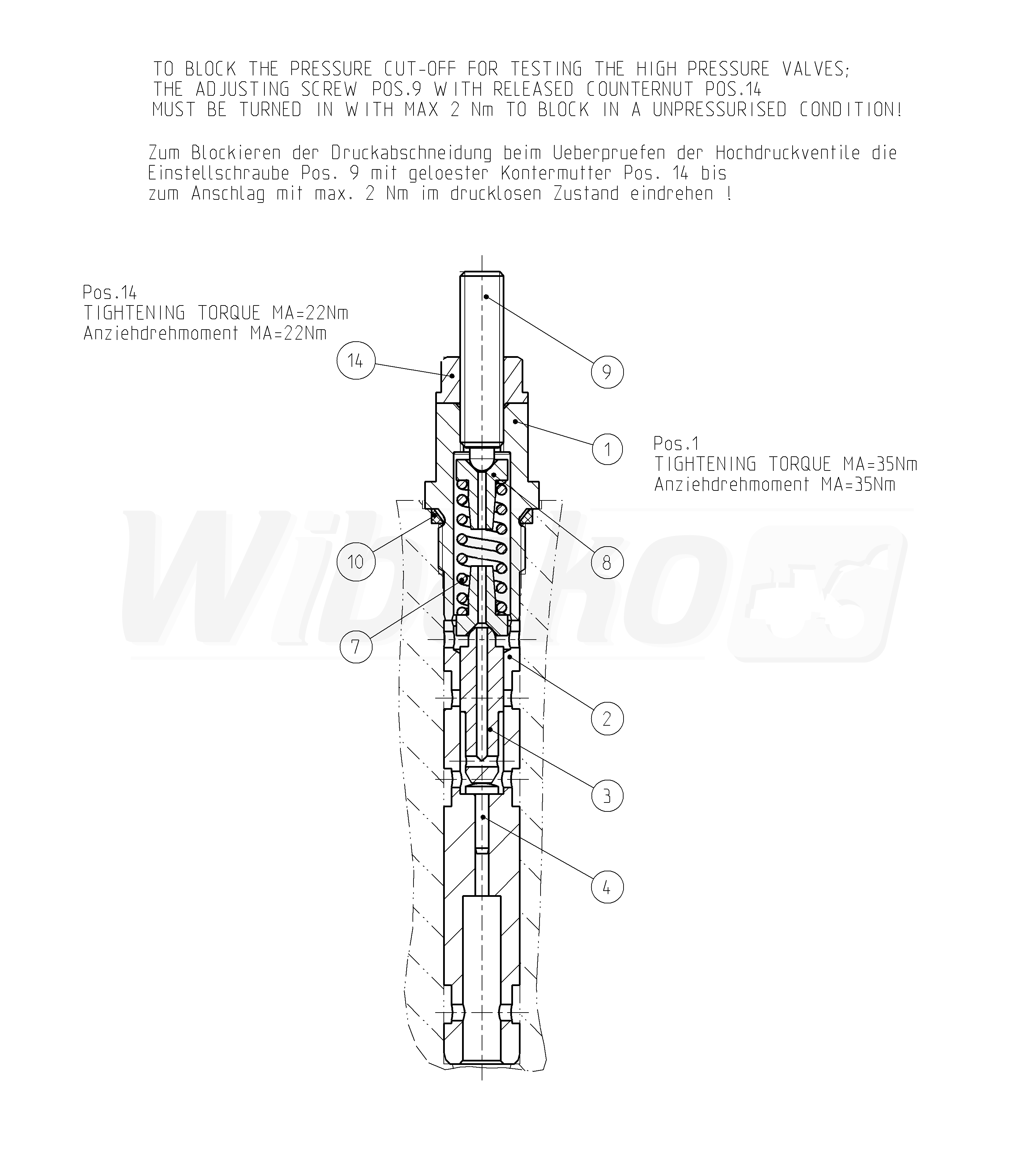

PRESSURE CUT-OFF VALVE (143719)

PRESSURE CUT-OFF VALVE
(143719)


1

SCREW PLUG
(10673)


2

VALVE BUSHING
(143720)


3

CONTROL PISTON
(10475)


4

PISTON
(10476)


7

COMPRESSION SPRING
(10479)


8

SPRING DISK
(10480)


9

ADJUSTING SCREW
(10481)


10

O-RING
(10482)


14

SEALING NUT
(10215)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
