A4VG145HP1D00T0/40JRND6T11FB4S5AD00-Y (R902192523)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, hydraulic, pilot-pressure related p = 6 to 18 bar. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Without connector. Without swivel angle sensor. Stroking chamber pressure port X3 X4. Without DA control valve. Series 40. Standard version with installation variants.

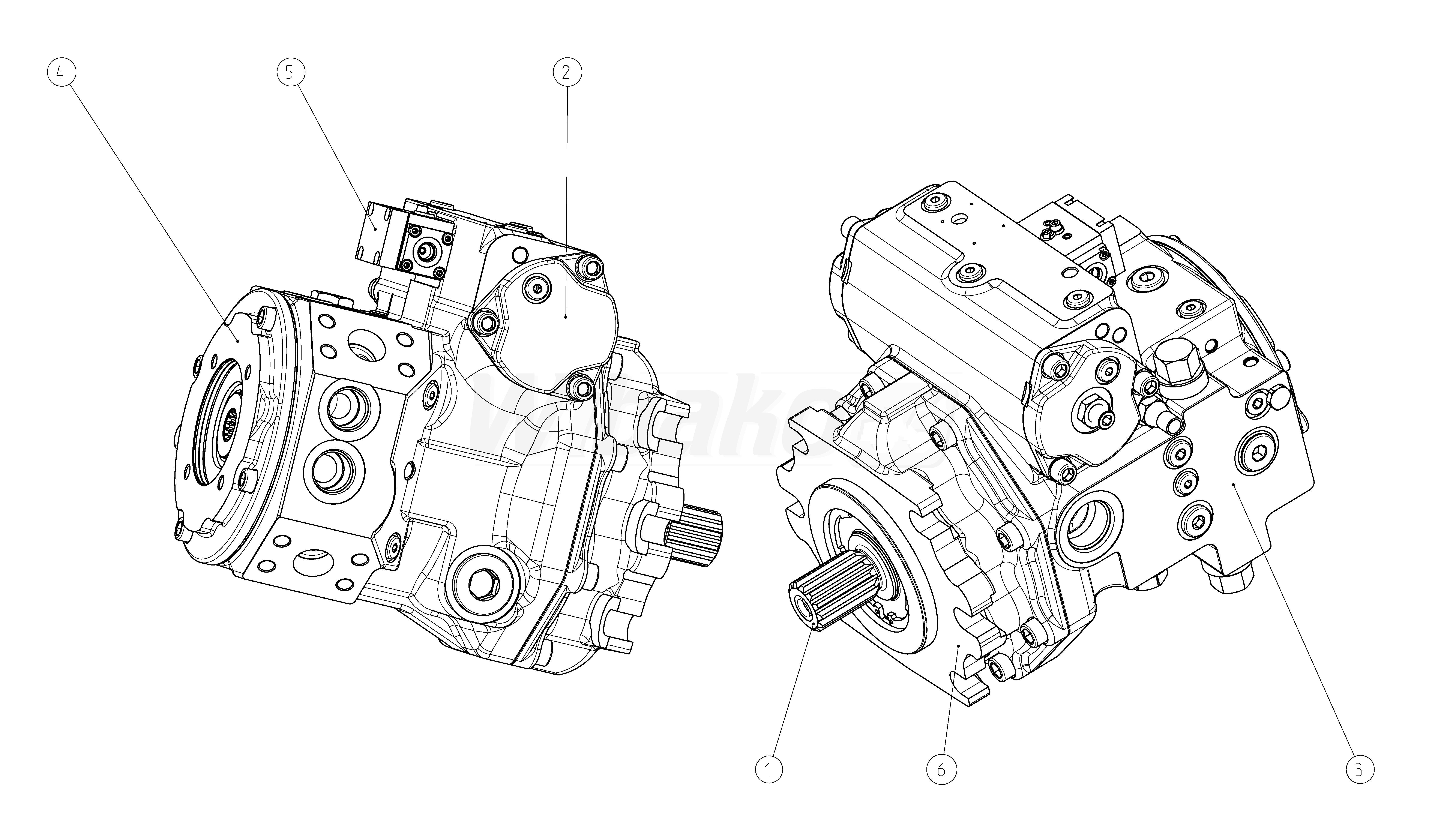

The above diagrams belong to Rexroth www.boschrexroth.com
