A4VG110EP1DPRN0/40MRND6T11FC3S7AT00-S (R902192541)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm3. Proportional control, electric U = 12 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. DEUTSCH molded connector, 2-pin – without suppressor diode. Electric swivel angle sensor (DWS20-1, 3-pin). Neutral valve U = 12 V. Without DA control valve. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP. SAE working port A and B, on left side (45° left). Standard rotary group, boost pump integrated, standard internal gear pump. Special version.

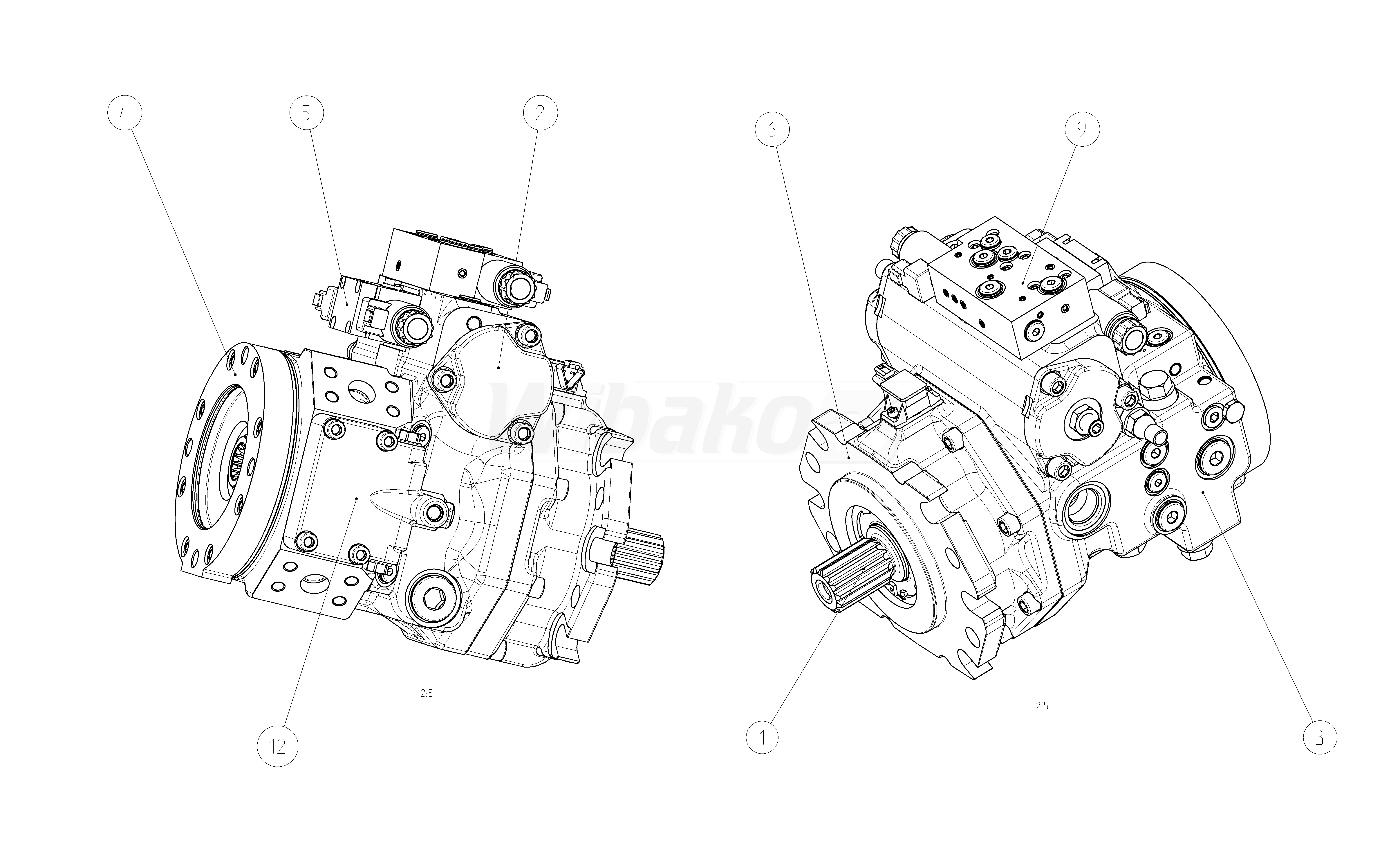

The above diagrams belong to Rexroth www.boschrexroth.com
