A10VG63HWD1/10R-NSC10K045E-S (R902190275)

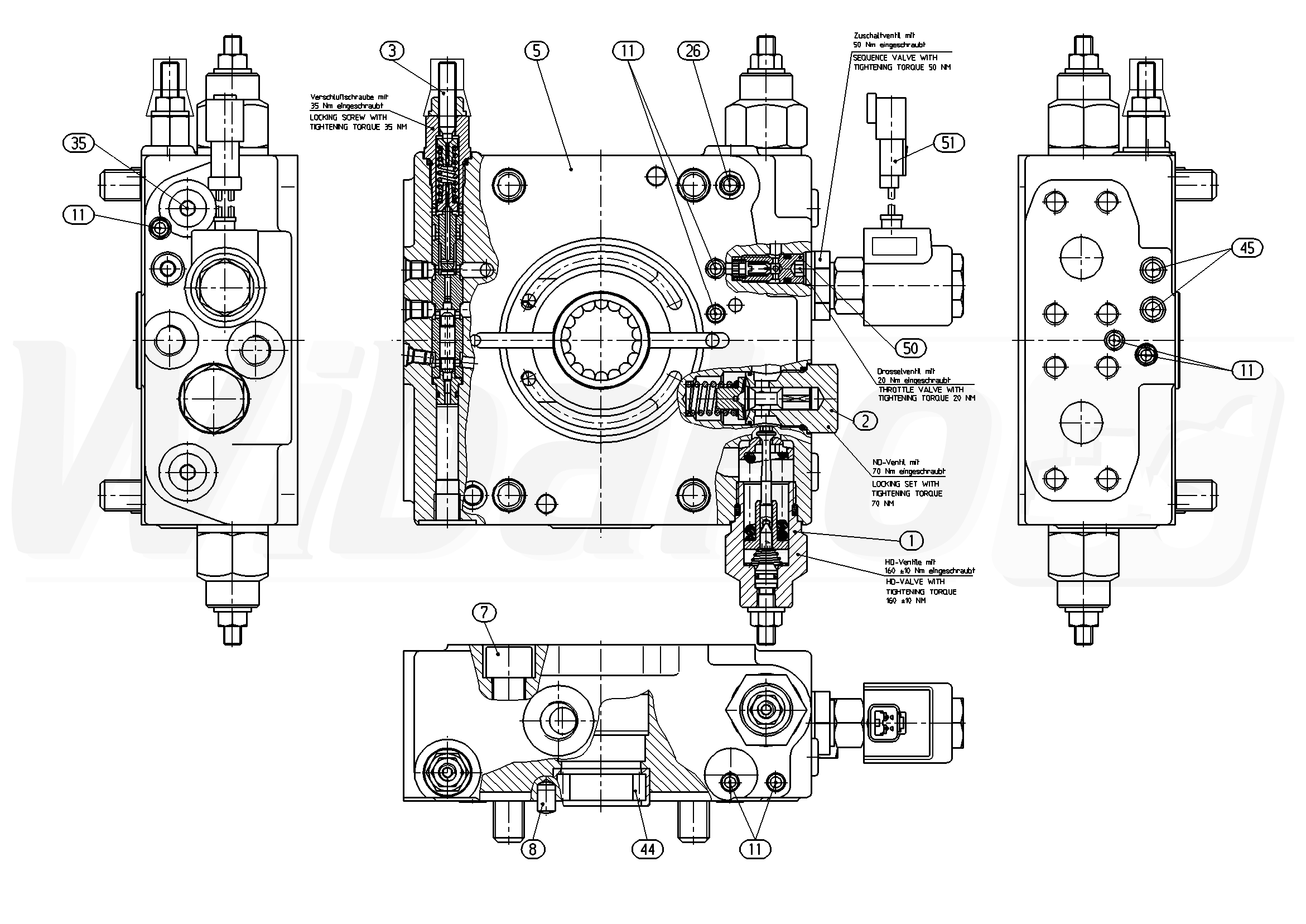

CONNECTION PLATE (20885)

CONNECTION PLATE
(20885)


1

PRESSURE RELIEF VALVE
(10863)

Group »


2

PRESSURE RELIEF VALVE
(10864)

Group »


3

PRESSURE CUT-OFF VALVE
(10666)

Group »


5

CONNECTION PLATE
(21127)


7

SOCKET HEAD CAP SCREW
(21102)


8

STRAIGHT PIN
(27134)


11

DOUBLE BREAK-OFF PLUG
(18990)


26

O-RING
(10227)


35

SCREW PLUG
(10190)


44

CYL. ROLLER BEARING
(20587)


45

DOUBLE BREAK-OFF PLUG
(19009)


50

THROTTLE VALVE
(20886)

Group »


51

DIRECTIONAL SPOOL VALVE
(21128)


98

SEAL KIT
(21103)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
