A4VG175EP10PRN0/40CRND6T11VC4S7AD4V-0 (R902192995)

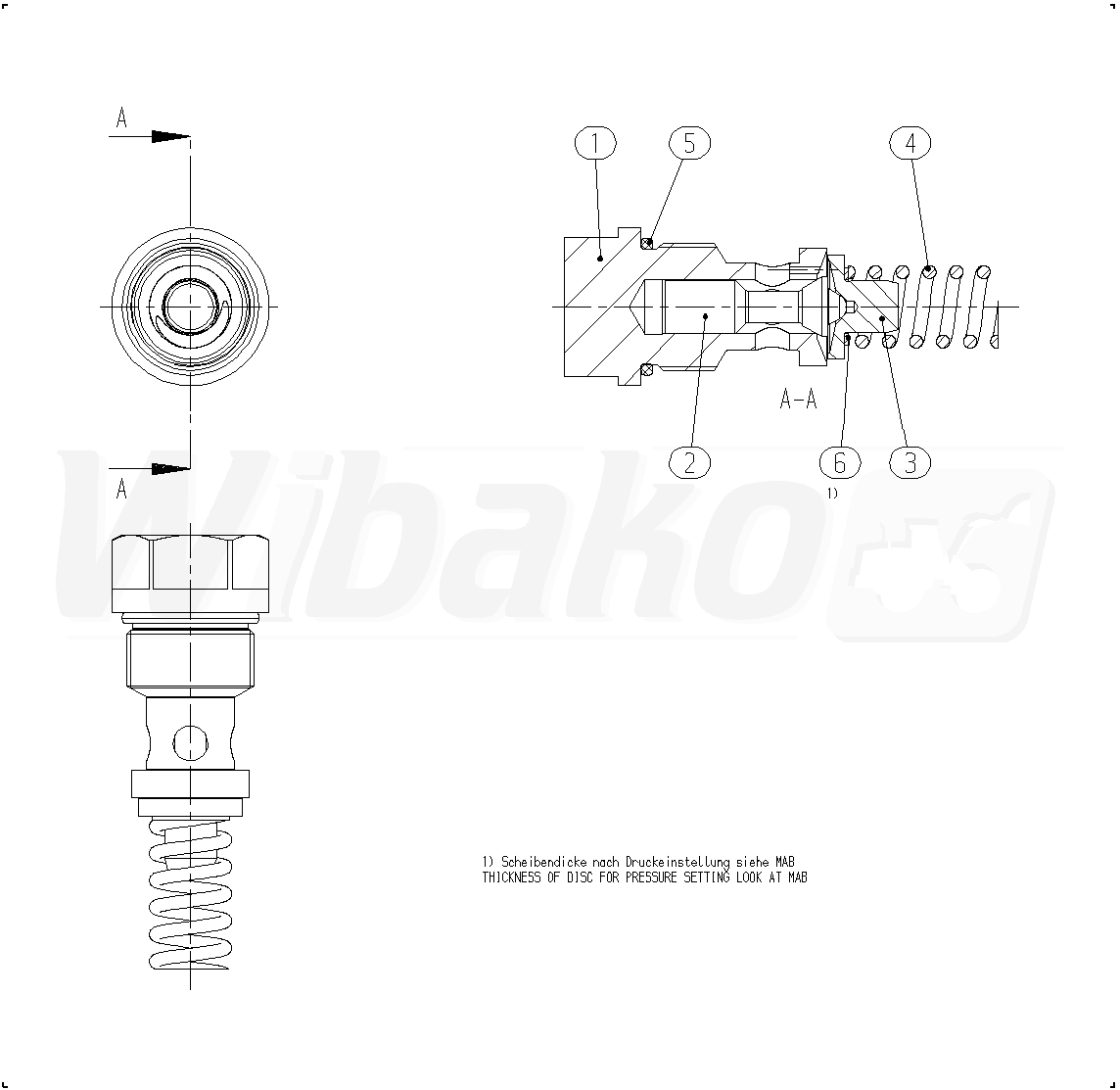

PRESSURE RELIEF VALVE (34901)

PRESSURE RELIEF VALVE
(34901)


1

SCREW PLUG
(33436)

Group »


2

VALVE SPOOL
(30635)


3

SPRING DISK
(30636)


4

COMPRESSION SPRING
(30637)


5

O-RING
(30634)


6

SHIM RING
(17166)


7

SHIM RING
(17168)


8

SHIM RING
(17167)


9

SUPPORTING DISC
(30638)


10

SUPPORTING DISC
(30639)


11

SUPPORTING DISC
(30640)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
