AA4VG180EP1/32+AA10VG63EP1/10-E (R902092588)

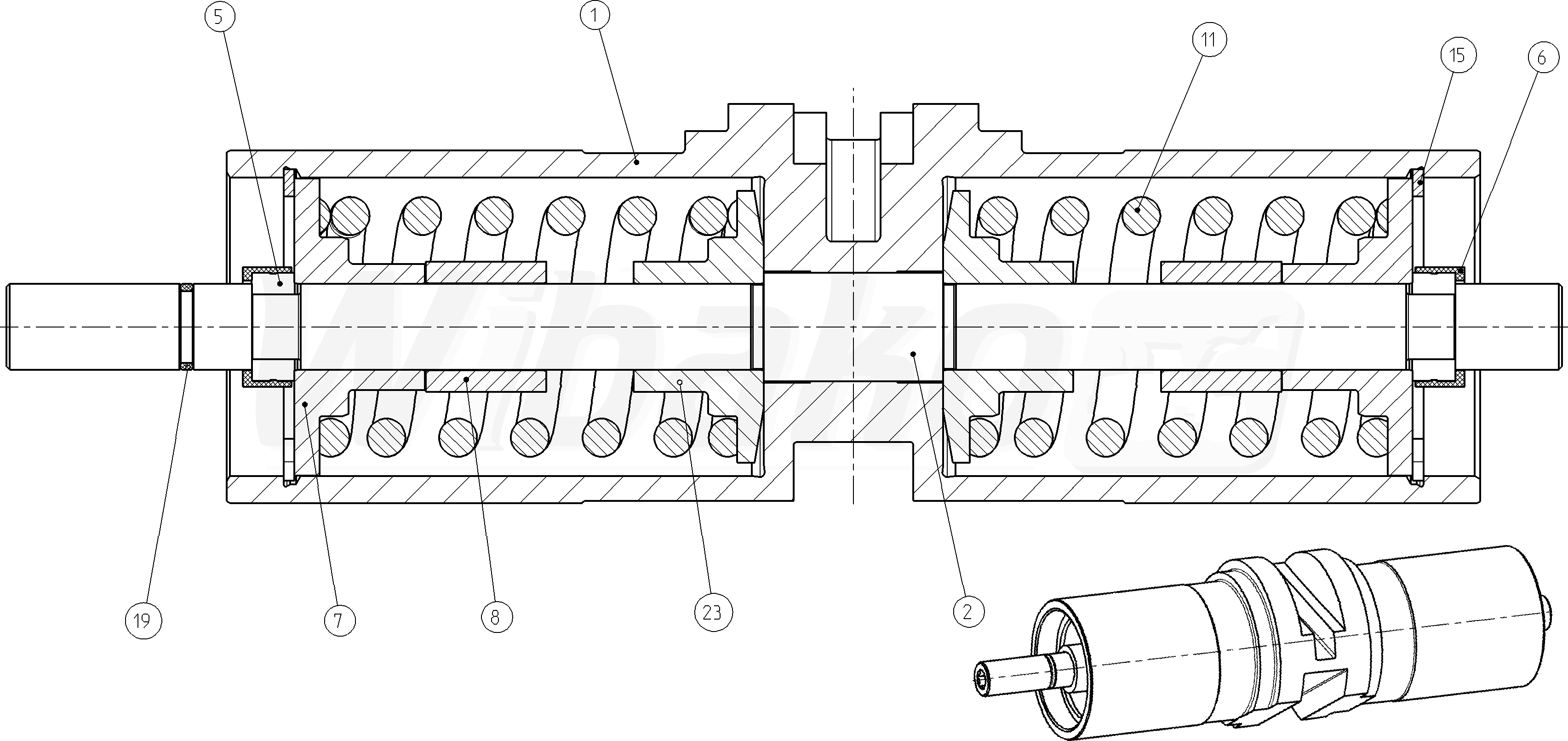

POSITIONING PISTON (49868)

POSITIONING PISTON
(49868)


1

POSITIONING PISTON
(50211)


2

ROD
(24808)


5

RING
(10436)


5

RING
(10437)


5

RING
(10438)


5

RING
(10439)


5

RING
(10440)


5

RING
(10441)


5

RING
(10442)


5

RING
(10443)


5

RING
(10444)


6

LOCATING RING
(10445)


7

SPRING DISK
(50212)


8

SPACER BUSHING
(50213)


8

SPACER BUSHING
(50214)


8

SPACER BUSHING
(50215)


11

COMPRESSION SPRING
(50216)


15

RETAINING RING
(11125)


19

O-RING
(10450)


23

SPRING DISK
(50217)
