AE A10V O 28 DR /31R-VSC62N00 -SO382 (R902461659)

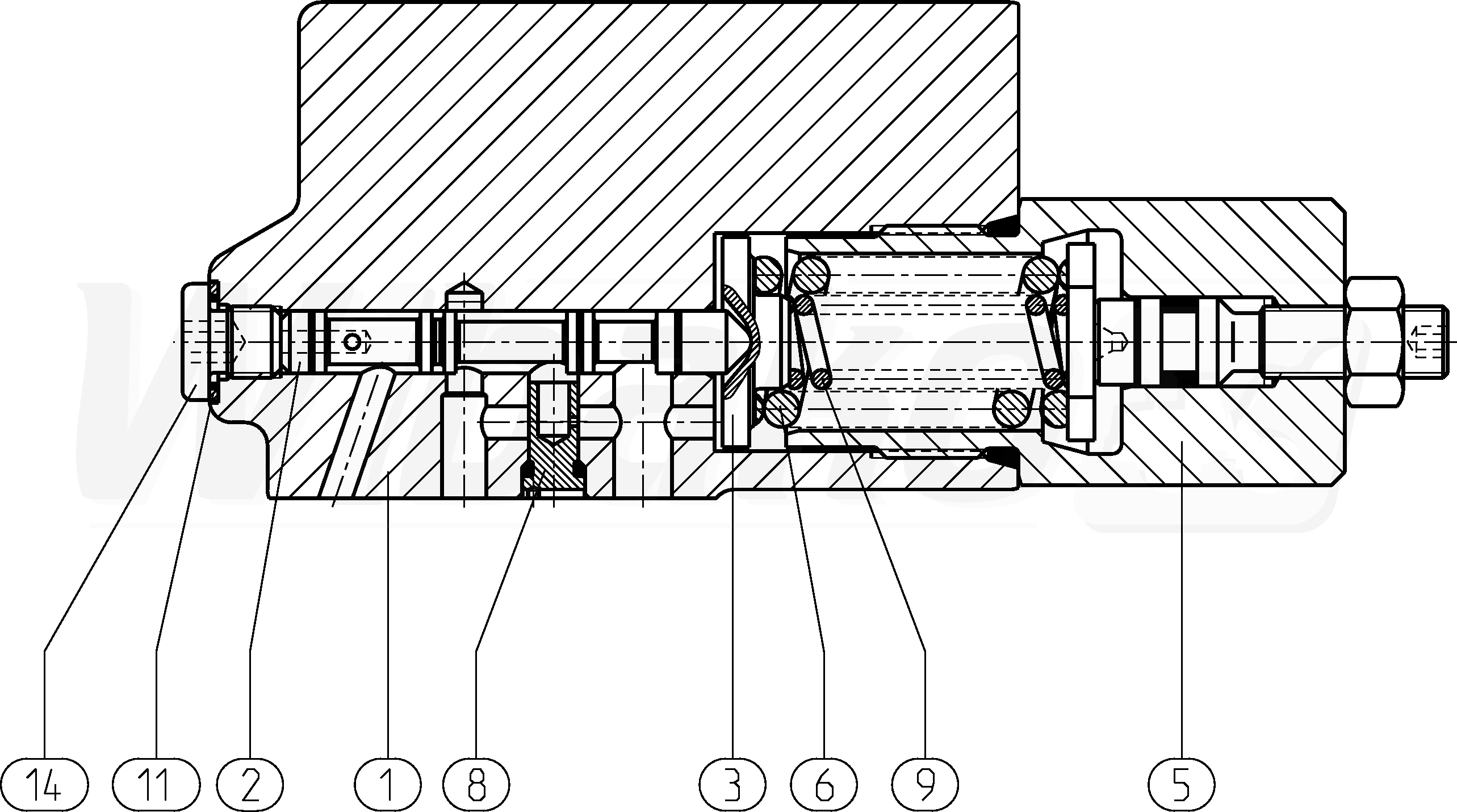

CONTROL VALVE (146500)

CONTROL VALVE
(146500)


1

VALVE HOUSING
(14390)


2

VALVE SPOOL
(13250)


3

SPRING DISK
(13246)


5

SERVO UNIT
(13989)

Group »


6

COMPRESSION SPRING
(13249)


8

ORIFICE
(146501)


9

COMPRESSION SPRING
(13251)


11

BONDED SEAL RING
(13991)


14

SCREW PLUG
(11918)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
