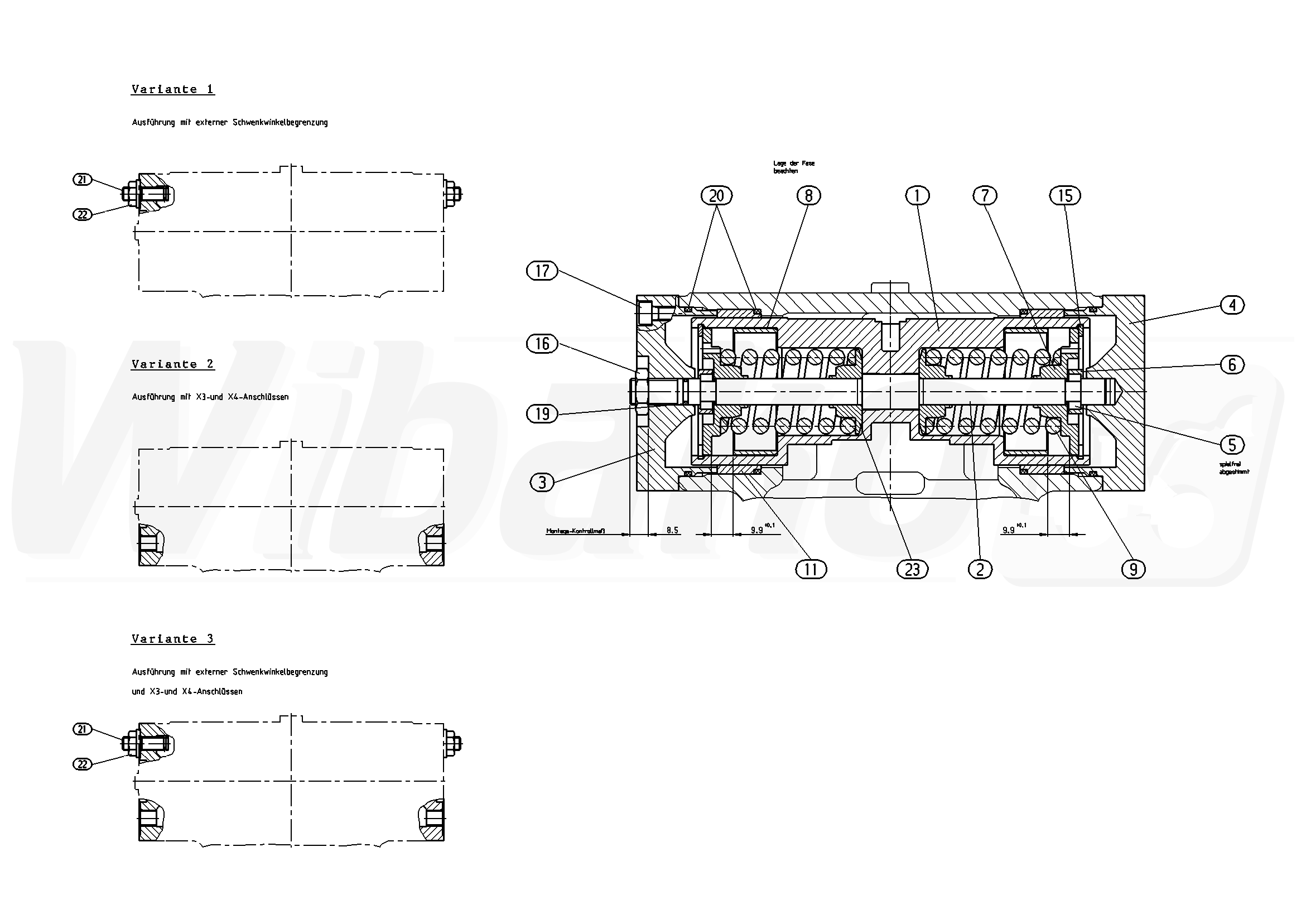

AA4VG71NVD1/32L-NSF52XXX1S-S*G* (R909600273)
CONTROL (20435)

CONTROL
(20435)


1

POSITIONING PISTON
(20560)


2

ROD
(10650)


3

COVER
(10642)


4

COVER
(10643)


5

RING
(10651)


5

RING
(10652)


5

RING
(10653)


5

RING
(10654)


5

RING
(10655)


5

RING
(10656)


5

RING
(10657)


5

RING
(10658)


6

LOCATING RING
(20561)


7

SPRING DISK
(10660)


8

SPACER RING
(20562)


8

SPACER RING
(20563)


8

SPACER RING
(20564)


9

COMPRESSION SPRING
(14519)


11

BUSHING
(10644)


15

RETAINING RING
(10663)


16

HEXAGON NUT
(10645)


17

SOCKET HEAD CAP SCREW
(10646)


19

O-RING
(10227)


20

O-RING
(10647)


23

SPRING DISK
