AH A10V O 45 DFR1/31L-VSC11N00 -S2582 (R902469179)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 45 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; rear not for through drive. Without through drive.

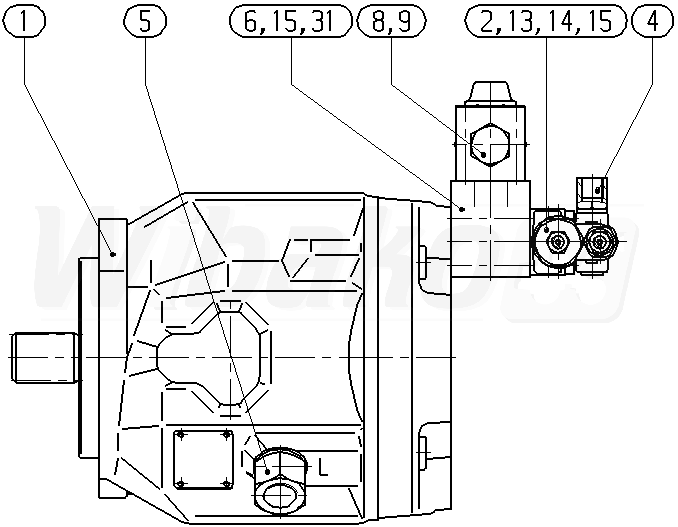

The above diagrams belong to Rexroth www.boschrexroth.com
