AHA10VO74DFLR/31R-VSC12N00-S1143 (R902408187)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 74 cm3. Pressure-flow power control. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Without through drive.

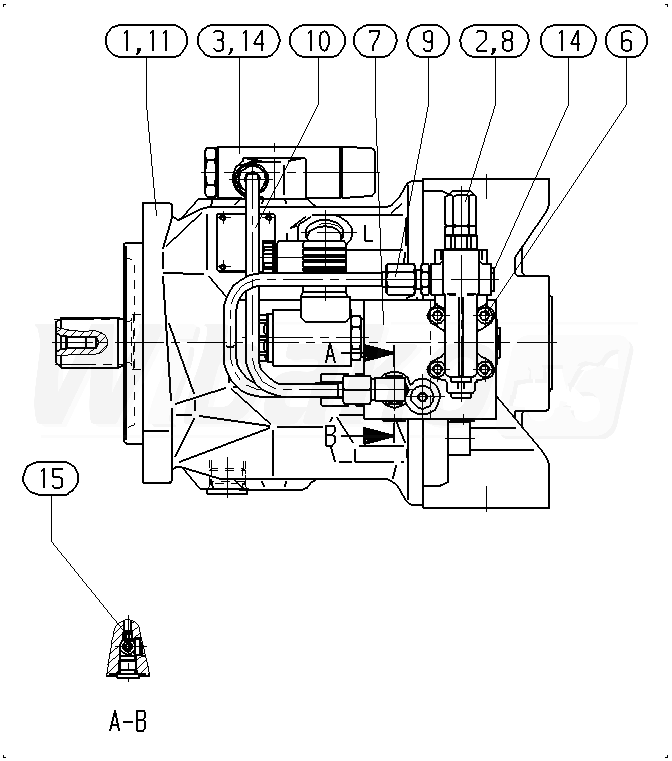

1

BASE UNIT
(147901)

Group »


2

CONTROL VALVE
(19862)

Group »


3

CONTROL VALVE
(13212)

Group »


6

SOCKET HEAD CAP SCREW
(20134)


7

VALVE PLATE
(120096)

Group »


8

SEAL
(10001)


9

PIPING
(20130)

Group »


10

PIPING
(20132)

Group »


11

POWER DIAGRAM
(147902)


14

SCREW PLUG
(11928)


15

NOZZLE
(14002)


60

SAFETY CAP
(13891)



Return
