AH A10V O 74 DFLR/31R-VSC12N00 -SO909 (R910994882)

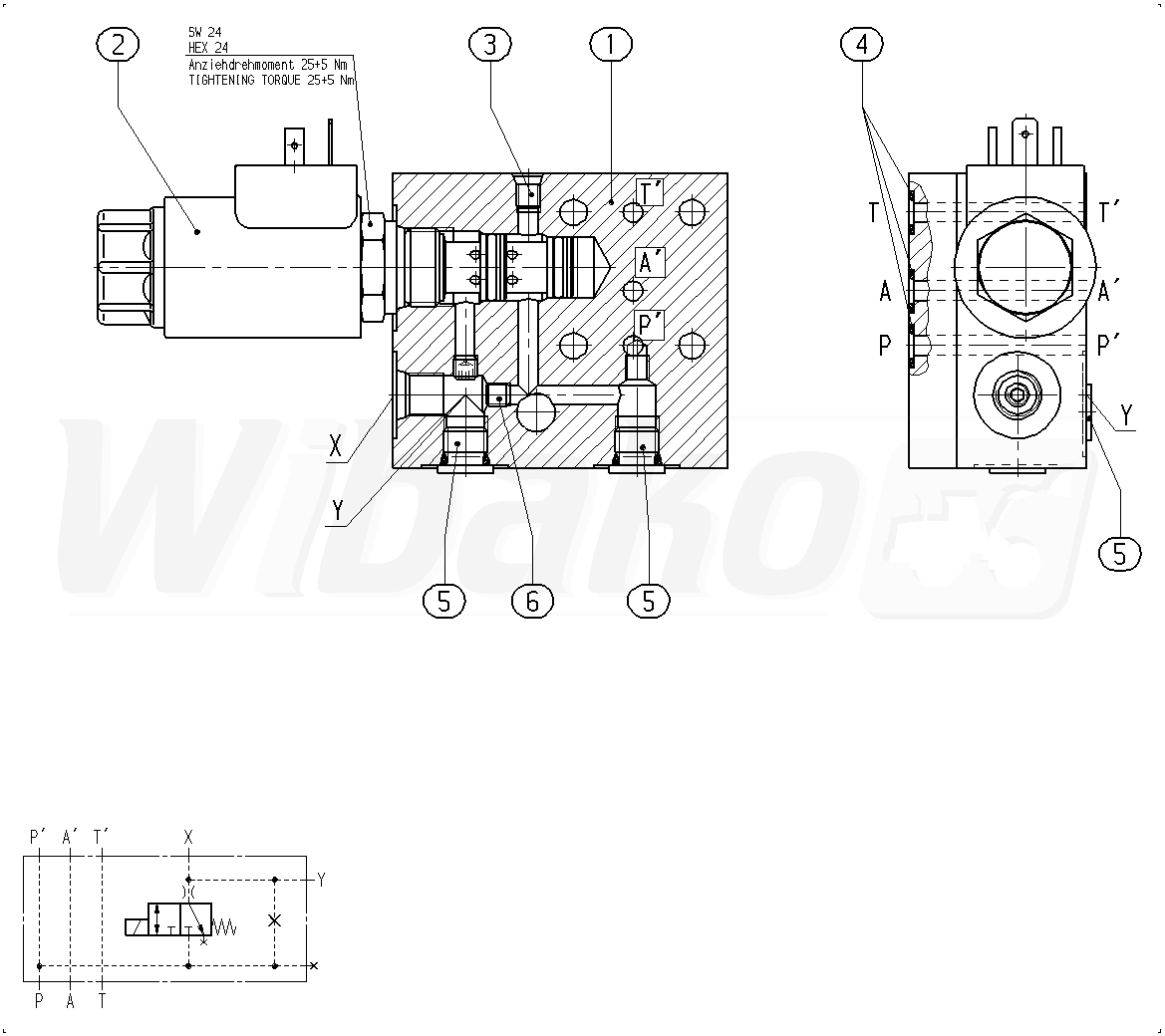

VALVE PLATE (147910)

VALVE PLATE
(147910)


1

VALVE PLATE
(20137)


2

DIRECTIONAL SPOOL VALVE
(20138)


3

DOUBLE BREAK-OFF PLUG
(18990)


4

O-RING
(18405)


5

SCREW PLUG
(11928)


6

BREAK-OFF PLUG
(20139)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
