AHA10VO74DFLR/31R-VUC12N00P-S2322 (R902459314)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 74 cm3. Pressure-flow power control. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a, reduced diameter, limited suitability for through drive. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Without through drive. DEUTSCH - molded connector, 2-pin, without suppressor diode.

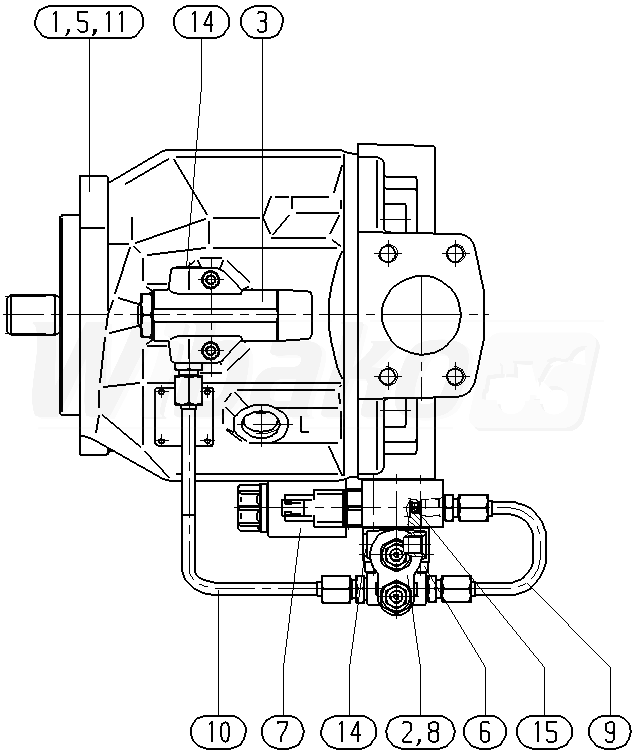

1

BASE UNIT
(147940)

Group »


2

CONTROL VALVE
(17388)

Group »


3

CONTROL VALVE
(13212)

Group »


5

SIDE MARKER RING
(116448)


6

SOCKET HEAD CAP SCREW
(19886)


7

VALVE PLATE
(19863)

Group »


8

SEAL
(10001)


9

PIPING
(19864)

Group »


10

PIPING
(19866)

Group »


11

POWER DIAGRAM
(147882)


14

SCREW PLUG
(11928)


15

NOZZLE
(10619)


51

SAFETY CAP
(13891)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
