AH A10V O 75 DFR1/31R-VSC42K52 -S2906 (R902480465)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 75 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Through drive. Flange ISO 3019-1 82-2 (A). Hub for splined shaft 3/4 in 11T 16/32DP .

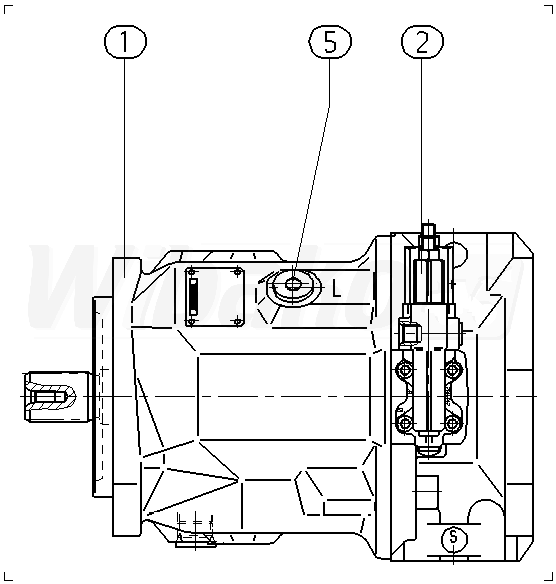

The above diagrams belong to Rexroth www.boschrexroth.com
