AH A10V O100 DFR1/31L-VWC13KC3 -S1824 (R902435135)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 100 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a, higher torque; limited suitability for through drive. Mounting flange ISO 3019-1 (SAE) 2-hole.

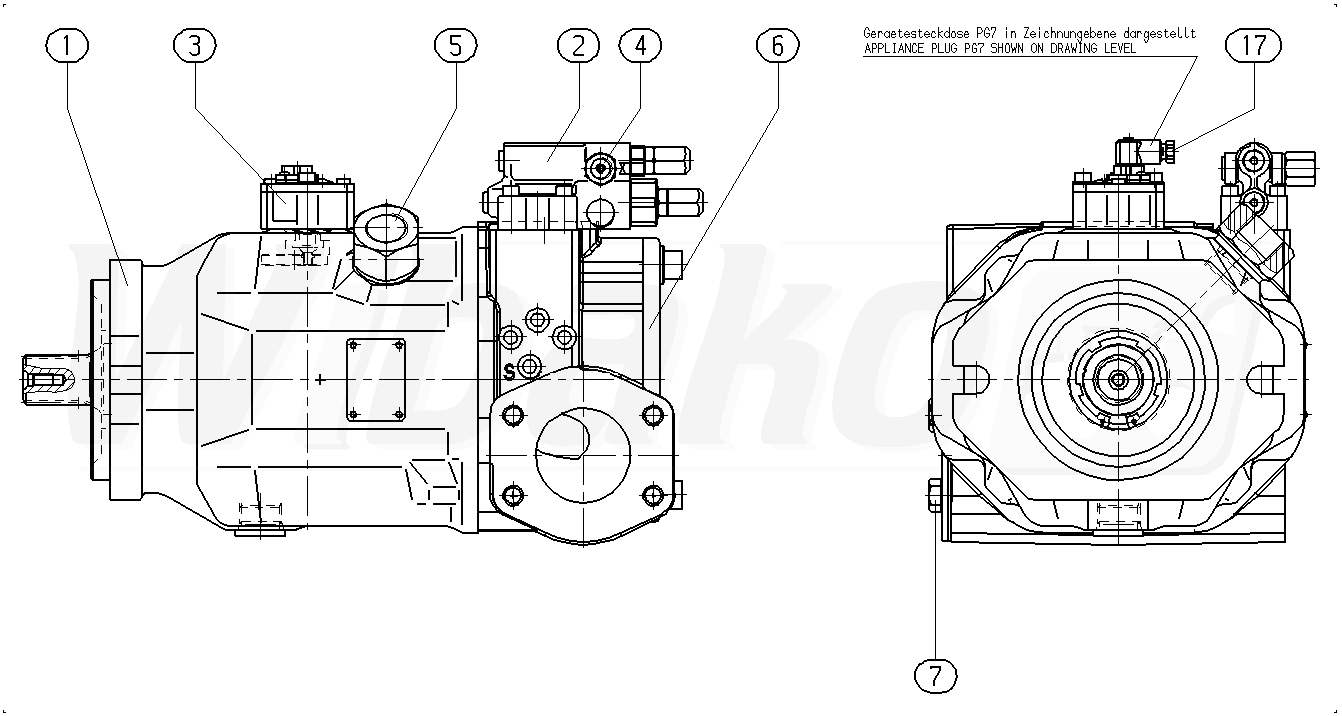

The above diagrams belong to Rexroth www.boschrexroth.com
