AH A10V O100 DFR1/31L-VWC44H00-S2417*PT* (R902462627)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 100 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a, higher torque; limited suitability for through drive. Mounting flange ISO 3019-1 (SAE) 2-hole.

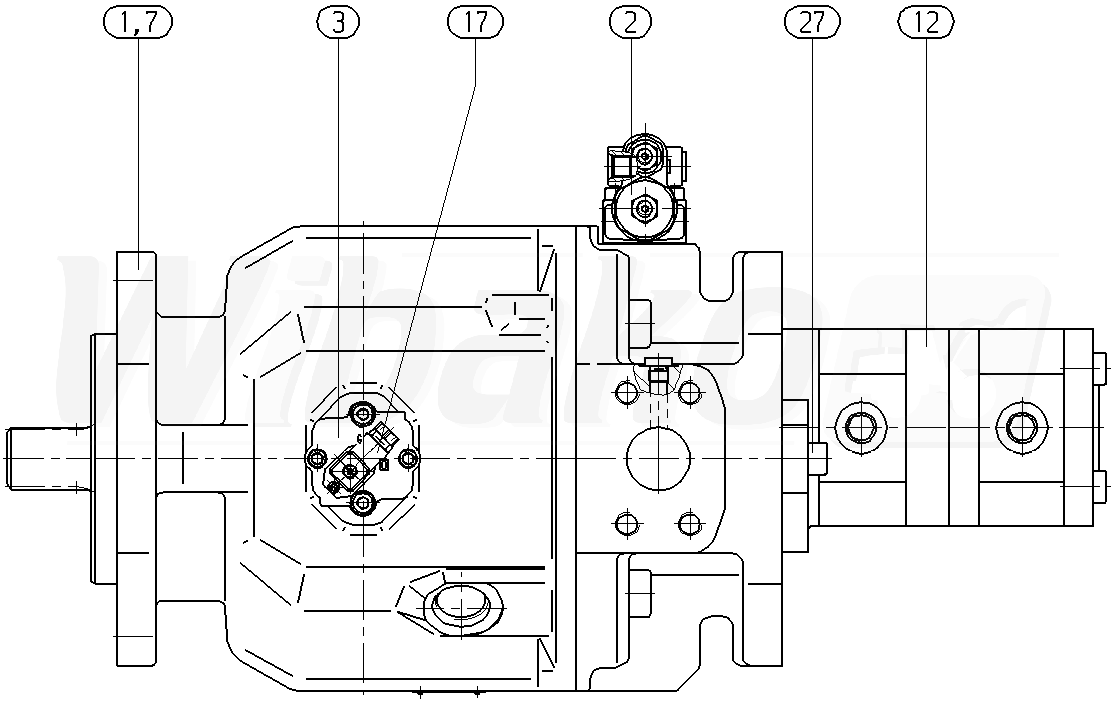

1

BASE UNIT
(148399)

Group »


2

CONTROL VALVE
(28684)

Group »


3

ASSEMBLY KIT
(20567)


7

SIDE MARKER RING
(119927)


12

GEAR PUMP
(117279)


17

EQUIPMENT SOCKET
(20568)


27

SOCKET HEAD CAP SCREW
(101366)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
