AHA10VO100ED72/31R-PSC12K06P-SO805 (R902437350)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 100 cm3. Pressure controller with pressure cut-of, electrical, negative control U = 24 V. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. DEUTSCH - molded connector, 2-pin, without suppressor diode.

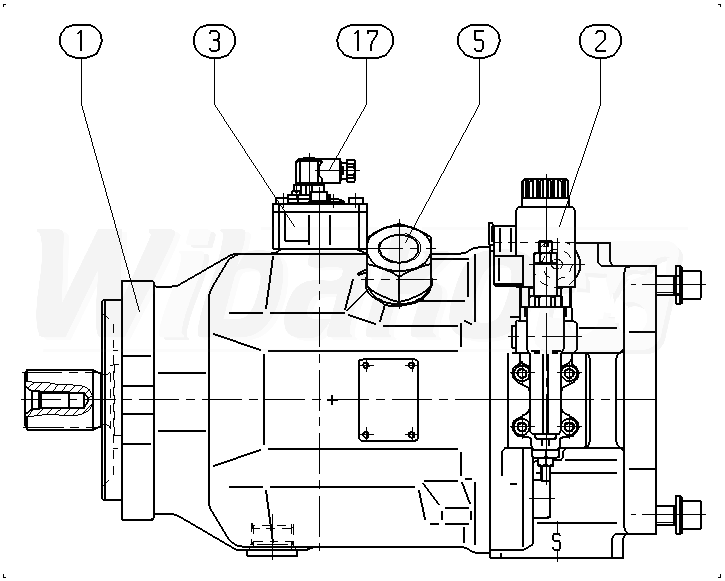

The above diagrams belong to Rexroth www.boschrexroth.com
