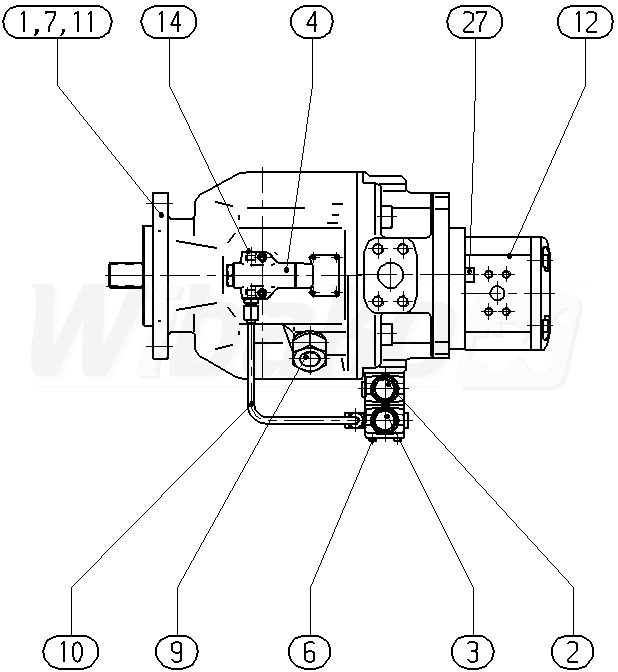

AH A10V O140 DFLR/31R-VQC12L70 -S2102 (R902450512)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 140 cm3. Pressure-flow power control. Sealing material: FKM (fluoroelastomer).
1

BASE UNIT
(121303)

Group »


2

CONTROL VALVE
(121775)

Group »


3

CONTROL VALVE
(121765)

Group »


4

CONTROL VALVE
(13212)

Group »


6

SOCKET HEAD CAP SCREW
(15901)


7

SIDE MARKER RING
(121766)


9

ADAPTER
(30933)

Group »


10

PIPING
(121624)

Group »


11

POWER DIAGRAM
(121612)


12

HYDRAULIC GEAR PUMP


14

SCREW PLUG
(11928)


27

SOCKET HEAD CAP SCREW
(108230)


70

SHIPPING PROTECTION
(19932)


71

SHIPPING PROTECTION
(19933)


72

SEAL SCREW
(15757)


73

SEAL SCREW
(15631)


75

NAMEPLATE
(15166)


76

SHIPPING PROTECTION
(19799)


77

SHIPPING PROTECTION
(19173)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
