AH A10V O140 DFLR/31R-VQC11N00 -S3374 (R902491438)

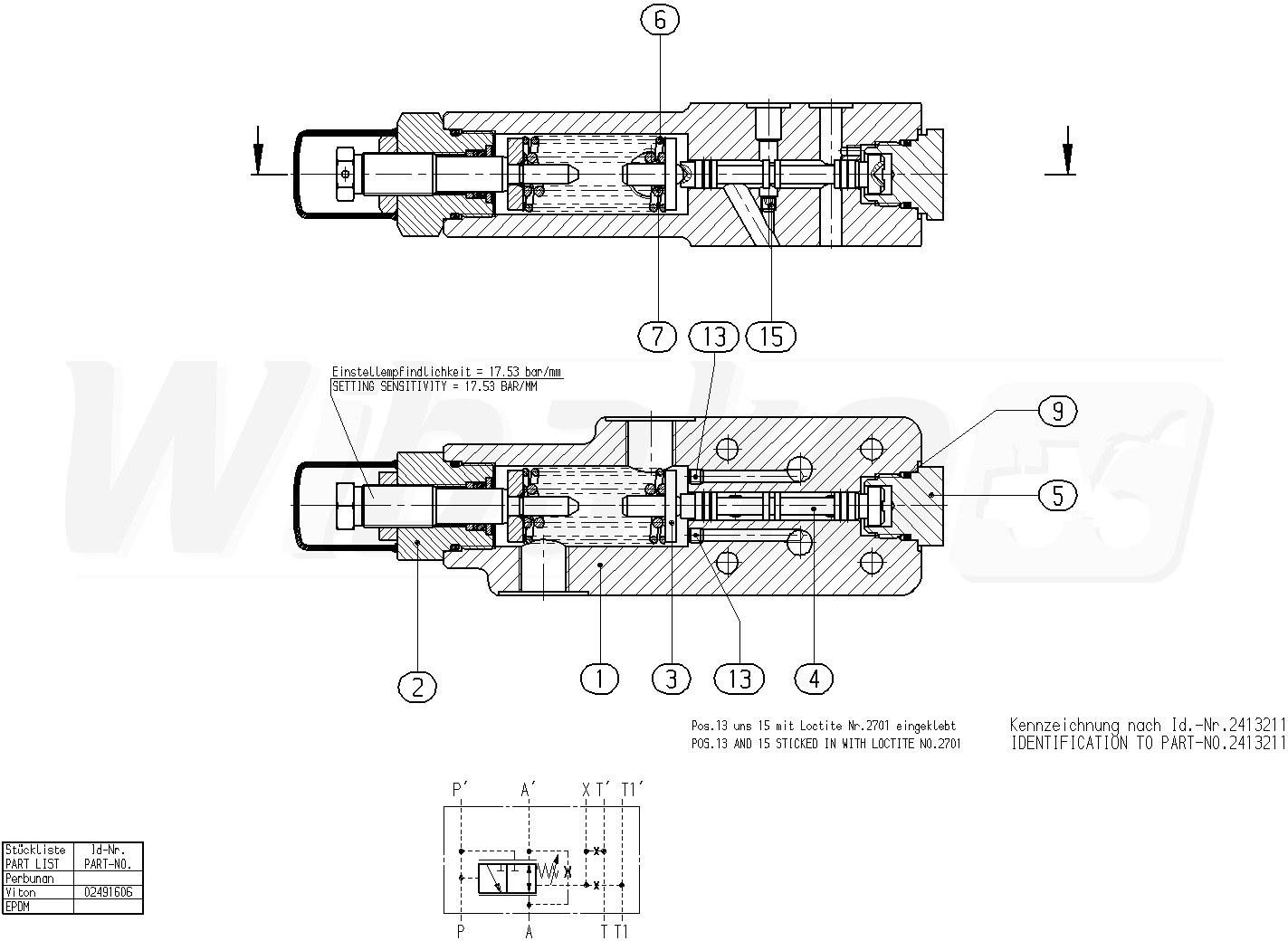

CONTROL VALVE (148838)

CONTROL VALVE
(148838)


1

VALVE HOUSING
(21023)


2

CONTROL
(20530)

Group »


3

SPRING DISK
(10101)


4

VALVE SPOOL
(10102)


5

SCREW PLUG
(20731)


6

COMPRESSION SPRING
(15627)


7

COMPRESSION SPRING
(10104)


9

O-RING
(15641)


13

SETSCREW
(13925)


15

NOZZLE
(20732)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
