AHA10VO140DFR1/31L-PQC13KC3-S1416 (R902414663)

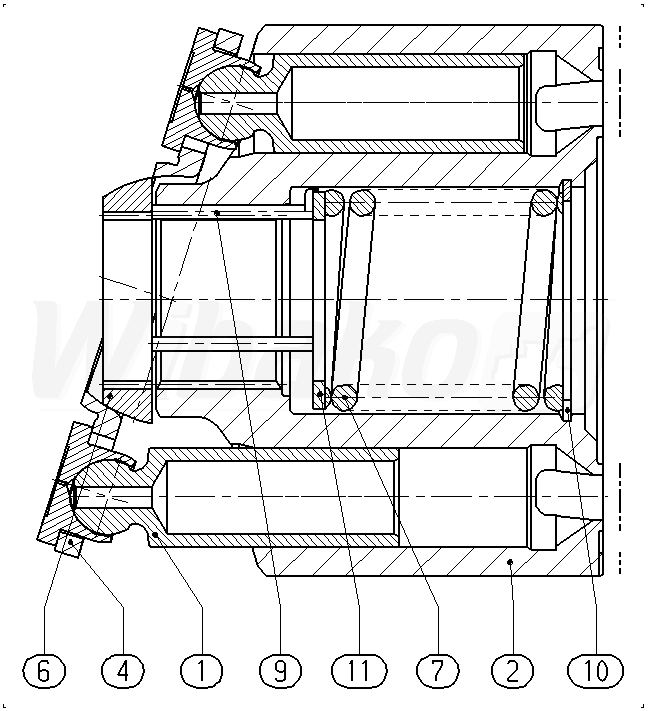

ROTARY GROUP (148901)

ROTARY GROUP
(148901)


1

PISTON PAD
(17867)


2

CYLINDER
(148904)


4

RETAINING PLATE
(17869)


6

RETAINING BALL
(17870)


7

COMPRESSION SPRING
(17871)


9

PRESSURE PIN
(17872)


10

RETAINING RING
(17873)


11

SUPPORTING DISC
(17874)



Return
