AH A10V O140 DFR1/31L-PSD11N00 -S1970 (R902443802)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 140 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 4-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; rear not for through drive. Without through drive.

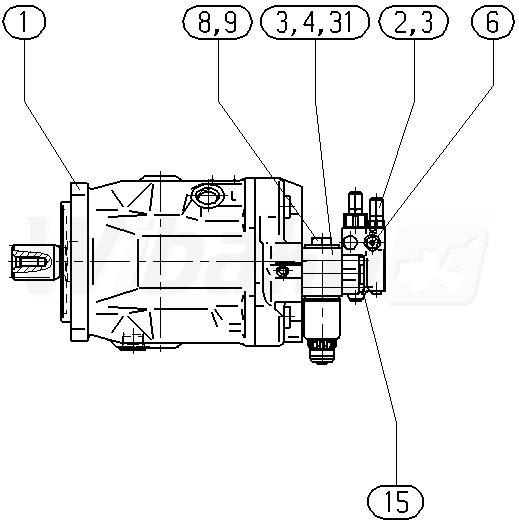

1

BASE UNIT
(148909)

Group »


2

CONTROL VALVE
(14677)

Group »


4

INTERMEDIATE PLATE
(19928)


6

SCREW PLUG
(11371)


8

DIRECTIONAL SPOOL VALVE
(19931)


9

SOCKET HEAD CAP SCREW
(10074)


15

SOCKET HEAD CAP SCREW
(19930)


16

SEAL
(10001)


31

DOUBLE BREAK-OFF PLUG
(19008)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
